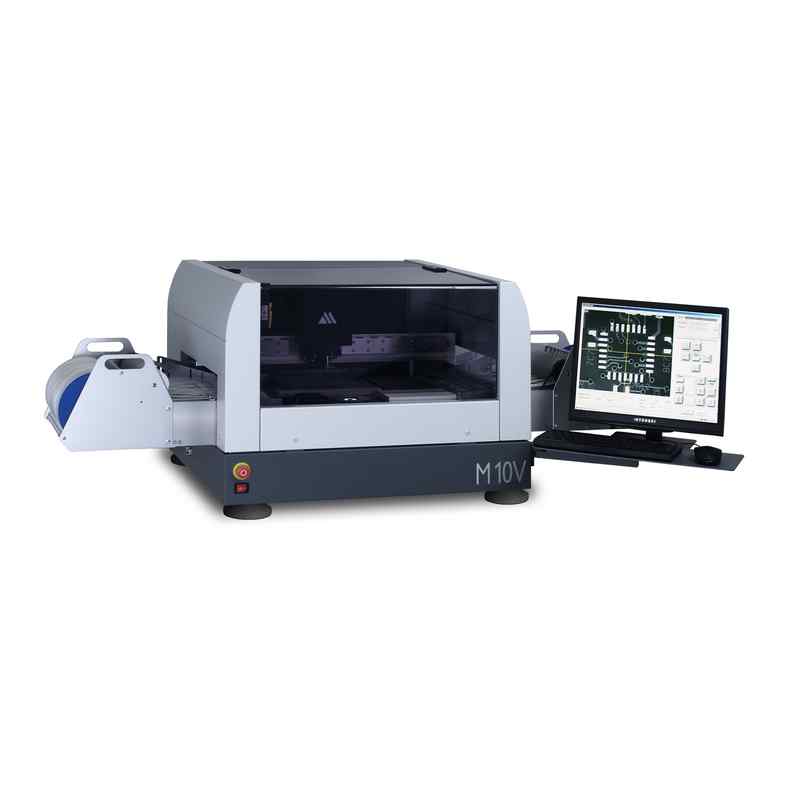

PCB: Placement area 300 × 400 mm
Feeders: Max 40 feeders (8 mm tapes) or 32 feeders (8 mm tapes) + 20 sticks (SO8)
Components: Range from 0201 to 40 × 40 mm
Pitch: Up to 0.5 mm
Component Packing: Tapes (8, 12, 16, 24, 32, 44 mm); Sticks (SO8–PLCC84); Trays; Bulk / loose components
Placement Rate: 1200 – 1600 cph
Placement Accuracy: Better than 0.08 mm
Nozzle Changer: Automatic, 8 nozzles
Nozzle Detection: Automatic sensing of nozzle presence
XY Resolution: 5 µm (linear encoders as standard)
Vision System: Automatic fiducial correction; Automatic bad mark sensing; Automatic bulk component feeding; Touchless component centering
Angle Resolution: 0.05°
Control Panel: 17’’ LCD screen, keyboard, mouse
Options: CAD data import; Dispensing head (glue/paste); Tape strips feeder; Bulk / loose components feeder
Dimensions & Weight: 750 × 830 × 550 mm; 70 kg
Power Supply: 230 V, 50 Hz, 400 W
Compressed Air Supply: 0.6 MPa, 20 l/min
Vision Centering
Fully automated placing
Automatic fiducials correction and bad mark sensing
Automatic change of nozzles
Automatic feeding of bulk / loose components
Pick & Place data can be entered manually in TEACH-IN mode or can be converted from various CAD data systems
Good price to performance ratio
