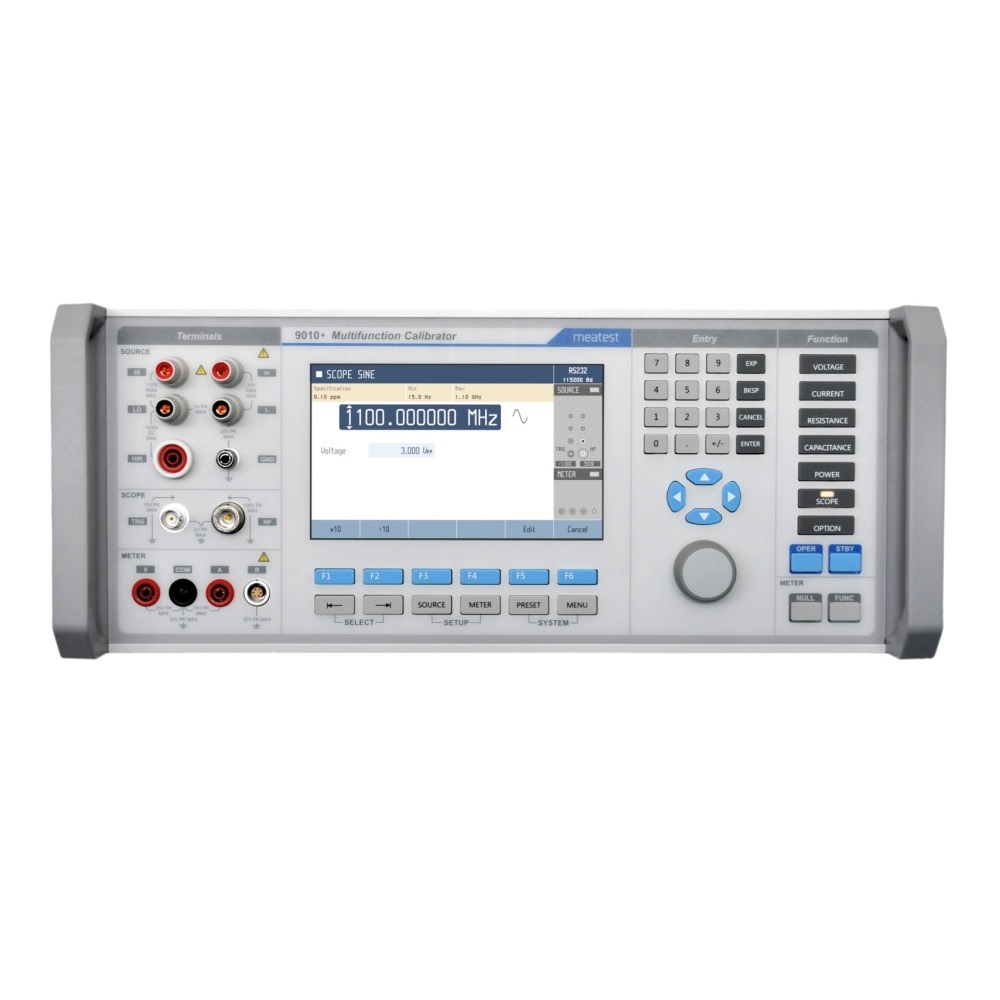

MEATEST 9010+ Multifunction Calibrator (0-1050VDC; 1mV-1050VAC)
DC voltage: 0 - 1050 V
± 10 ppm / year
AC voltage: 1 mV - 1050 V, 15 Hz - 300 kHz
sinusoidal & non-sinusoidal waveforms, harmonics
± 160 ppm / year
DC current: 0 - 30 A (1500 A with 140-50 Current Coil)
± 100 ppm / year
AC current: 10 uA - 30 A, 15 Hz - 10 kHz (1500 A with 140-50 Current Coil)
sinusoidal & non-sinusoidal waveforms, harmonics
± 400 ppm / year
DC Power & Energy: 40 uW - 30 kW (1575 kW with 140-50 Current Coil)
± 160 ppm / year
AC Power & Energy: 40 uW - 30 kW, 15 - 1000 Hz (1575 kW with 140-50 Current Coil)
50 harmonic products, voltage from current
± 670 ppm / year
Resistance: 0 Ω - 1.1 GΩ, resolution 6½ digits
± 15 ppm / year
Insulation Resistance: 100 kΩ - 100 GΩ
rated up to 1.5 kV
Capacitance: 800 pF - 120 mF, resolution 6½ digits
± 0.25 % / year
Temperature: TC B,C,D,E,G2,J,K,M,N,R,S,T with cold junction compensation
RTD ± 0.03°C / year
Frequency: 0.1 Hz - 1100 MHz
± 2.5 ppm / year
GENERAL DATA
Warm-up time: 30 minutes
Operating temperature: +13 °C – +33 °C
Storage temperature: -10 °C – +55 °C
Temperature coefficient: 10 % of accuracy / °C outside TREF
Max relative humidity: 70 %
Power supply: 115/230V - 50/60 Hz, 450 VA max
Dimensions (W x H x D): 435 x 175 x 620 mm
Weight: 24 Kg
Interfaces: RS232, IEEE488, USB, Ethernet
