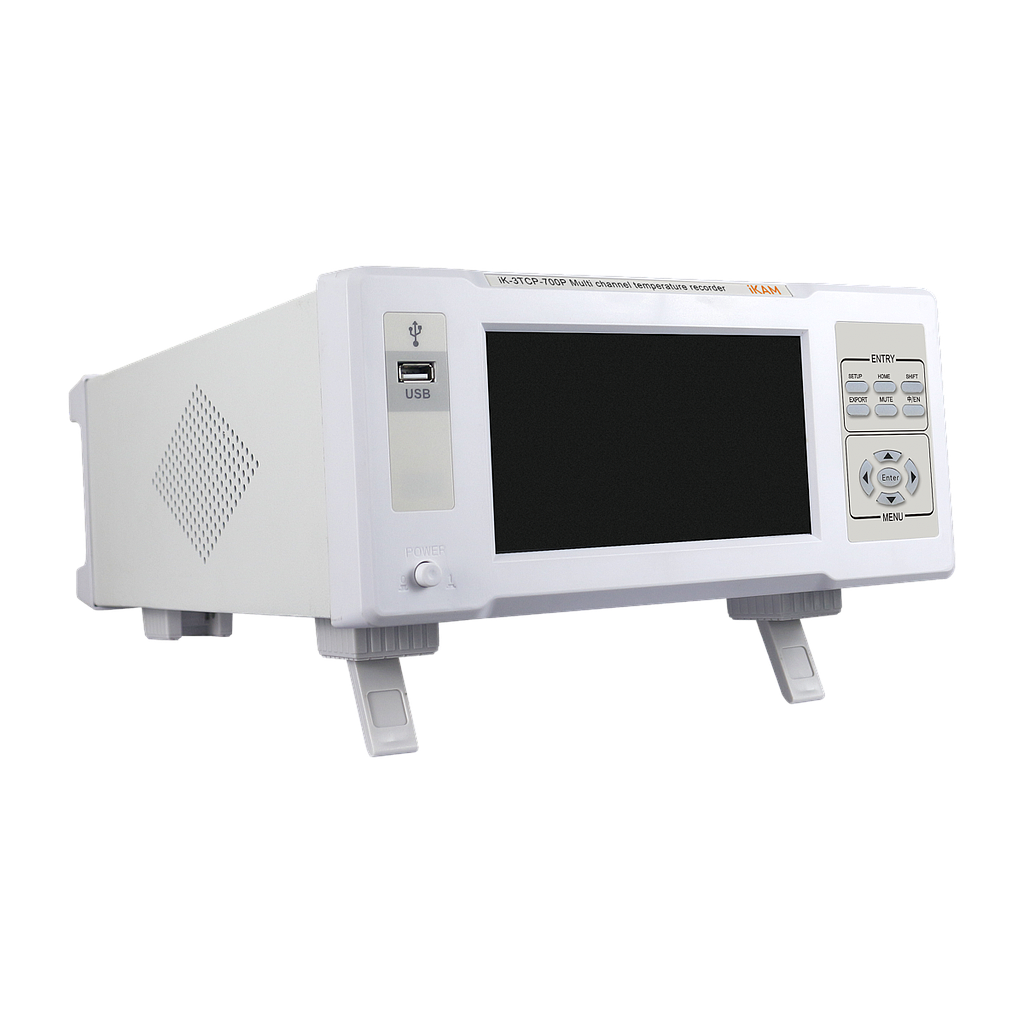

iKAM iK-3TCP-700P ເຄື່ອງບັນທຶກອຸນຫະພູມຫຼາຍຊ່ອງທາງ

Number of testing channels: 8-64 routes (every 8 routes as a group)

Screen size: 7-inch LCD touch screen

sensor type: S、R、B、N、K、E、J、T、W5/26、PT100、PT1000、Cu50 (requiring TCP-700P、TCP-2000P) Flow rate, pressure, 0-20mA, 4-20mA, 0-5V, 0-10V (TCP-700Q、TCP-2000Q required)

Display basic accuracy: 0.2% + 0.5°C + 2 words (excluding thermocouple accuracy)

Display Function: (TCP-500XL has no curve display)Numerical/Curve Display/Column Display

DisplayCorrection: independent error for each channel linear correction F=kx+b (x=measured value)*Alarm

The alarm function: can be set with upper limit, upper limit, lower limit, and lower limit alarms, and also supports recording function

Alarm item: Customizable relay alarm output

Temperature unit: °C、K、°F

The system language: supports switching between Chinese and English interfaces

Test performance: 32 ARM microprocessor, screen response time<0.5S

Live test: Each channel is isolated from each other and resistant to high-frequency interference AC380V、DC500V (TCP-1000XH TCP-2000XH live test: AC1000V, DC1500V)

data protection: Data is not lost in case of power failure and can be stored for 72 hours to 180 days

Internal storage: built-in 8GB large capacity FLASH storage for data

Data export: supports external USB drive to export and store data (the instrument can also be connected to a USB cable to view data files)

Temperature unit: Display range Different range can be selected according to different sensors

Marking and commenting function: Each temperature value can be named arbitrarily with a custom name

Real Time Clock: Using hardware real-time clock with clock error of ±1 minute/year

sampling period: Three sampling speed options high 100ms/medium 500ms/low 1S

Record cycle: 0.1 second~9999 seconds/group (any set interval time)

Communication interface: comes standard with USB communication interface and data acquisition software (optional for RS-232/RS485), TCP-400B is not available

Communication protocol: PC and two types of Modbus

The power configuration: can operate normally within a wide voltage range of AC 85V~265V
