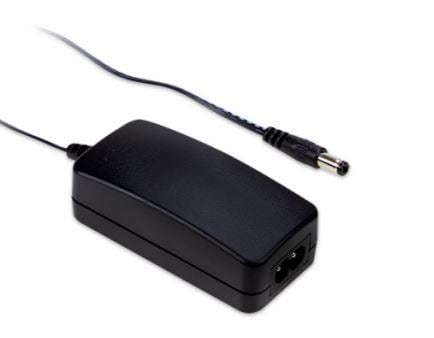

MEAN WELL SGAS15B15-P1J ອາແດບເຕັບ AC ເບີ 15W 15V 1A 2.1x5.5 ປລັກ DC C8 ຊ່ອງເຂົ້າ AC

Width: 39 mm

Height: 27.7 mm

Length: 80 mm

Region: Universal

Industry: Industrial

Approvals: CB, CSA, EAC TPTC, TUV BS EN/EN, UL

Efficiency: 85 %

Unit Weight: 130 g

Output Power: 15 W

AC Inlet Type: C8

Input Voltage: 90 VAC to 264 VAC, 135 VDC to 370 VDC

Connector Type: Circular Connector

Mounting Style: Desktop

Load Regulation: Regulated

Number of Outputs: 1 Output

DC Output Connector: C+ Tuning Fork Plug (2.1 mm x 5.5 mm x 11 mm)

Connector A Polarity: Center Positive

DC Output Cord Length: 1.2 m

Output Current-Channel 1: 1 A

Output Voltage-Channel 1: 15 VDC

AC Plug included/required: Required

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
