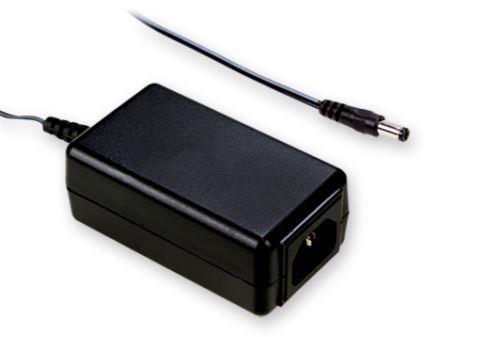

MEAN WELL SGAS15A24-P1J ອາເດັດເຕັບ AC ເບີ່ງ 15W 24V 0.625A 2.1x5.5 DC ປລັກ C14 AC ພວງເຂົ້າ

Width: 50.9 mm

Height: 33.8 mm

Length: 85.7 mm

Region: Universal

Industry: Industrial

Approvals: CB, CSA, EAC TPTC, TUV BS EN/EN, UL

Efficiency: 86 %

Unit Weight: 150 g

Output Power: 15 W

AC Inlet Type: C14

Input Voltage: 90 VAC to 264 VAC, 127 VDC to 370 VDC

Connector Type: Circular Connector

Mounting Style: Desktop

Load Regulation: Regulated

Number of Outputs: 1 Output

DC Output Connector: C+ Tuning Fork Plug (2.1 mm x 5.5 mm x 11 mm)

Connector A Polarity: Center Positive

DC Output Cord Length: 1.8 m

Output Current-Channel 1: 625 mA

Output Voltage-Channel 1: 24 VDC

AC Plug included/required: Required

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
