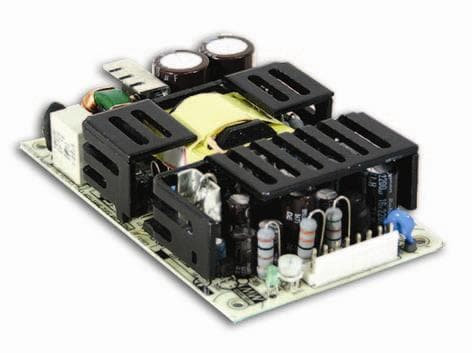

MEAN WELL RPT-75A ແຫຼ່ງຈົດສະຫຼຸບ 68.5W 5V/6A 12V/3A -5V/0.5A

Width: 76.2 mm (3 in)

Height: 30.988 mm (1.22 in)

Length: 127 mm (5 in)

Industry: Medical, Industrial

Approvals: EN60601-1, EN60950-1

Compliance: EN60601-1, EN60950-1

Unit Weight: 260 g

Output Power: 30 W

Input Voltage: 90 VAC to 264 VAC, 127 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Number of Outputs: 3 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 6 A

Output Current-Channel 2: 3 A

Output Current-Channel 3: 500 mA

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 12 VDC

Output Voltage-Channel 3: - 5 VDC
