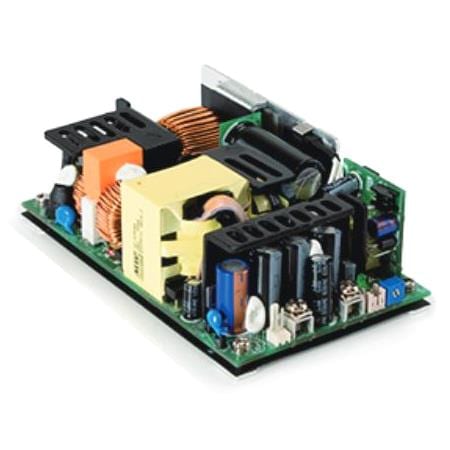

MEAN WELL RPS-500-48 ເຊັດຊິ້ນສະພາບ 499.2W 48V 10.4A 3x5 Med Open

Width: 76 mm (2.992 in)

Height: 40 mm (1.575 in)

Length: 127 mm (5 in)

Industry: Medical, Industrial

Efficiency: 94 %

Unit Weight: 460 g

Output Power: 500 W

Input Voltage: 80 VAC to 264 VAC, 113 VDC to 370 VDC

Mounting Style: PCB

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Power - Convection: 320 W

Power - Forced Air: 500 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 10.4 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
