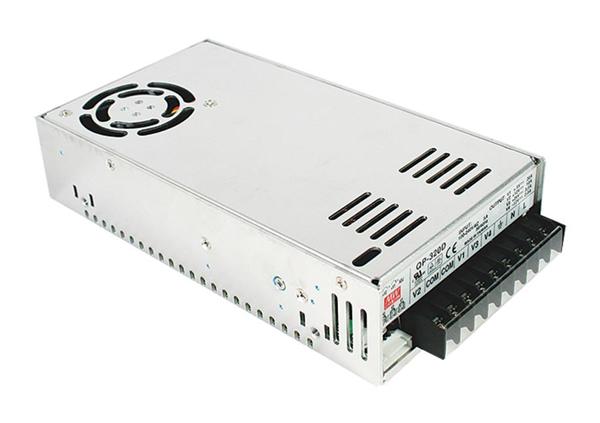

MEAN WELL QP-320F ອຸປະກອນໃຫ້ພະລັງງານປ່ຽນແປງ 316W 5V/20A 15V/8A 24V/3A -15V/1.6A

Width: 115 mm (4.528 in)

Height: 50 mm (1.969 in)

Length: 215 mm (8.465 in)

Industry: Industrial

Approvals: EN60950-1, UL60950-1

Compliance: EN60950-1, UL60950-1

Unit Weight: 1.2 kg

Output Power: 316 W

Input Voltage: 90 VAC to 264 VAC, 127 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Number of Outputs: 4 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 20 A

Output Current-Channel 2: 8 A

Output Current-Channel 3: 3 A

Output Current-Channel 4: 1.6 A

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 15 VDC

Output Voltage-Channel 3: 24 VDC

Output Voltage-Channel 4: - 15 VDC
