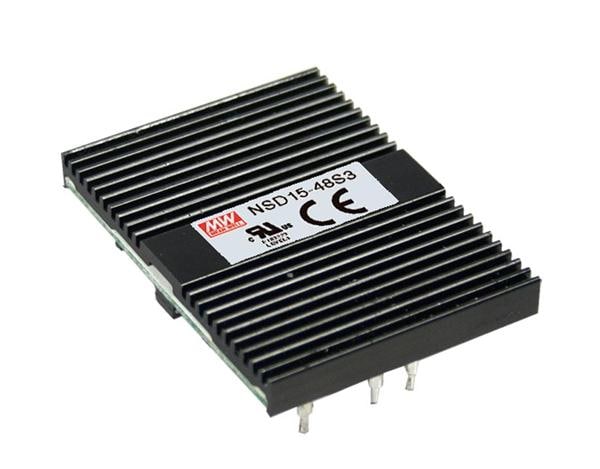

MEAN WELL NSD15-48S3 ອອບພຸດທີ່ແຍກອອກ +3.3V3.75A

Width: 38.1 mm (1.5 in)

Height: 9.82 mm (0.387 in)

Length: 50.8 mm (2 in)

Dimensions: 50.8 mm x 38.1 mm x 9.82 mm

Efficiency: 77 %

Unit Weight: 30 g

Output Power: 12.375 W

Input Voltage: 18 V to 72 V

Mounting Style: Through Hole

Isolation Voltage: 1.5 kV

Number of Outputs: 1 Output

Input Voltage - Max: 72 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 3.75 A

Output Voltage-Channel 1: 3.3 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
