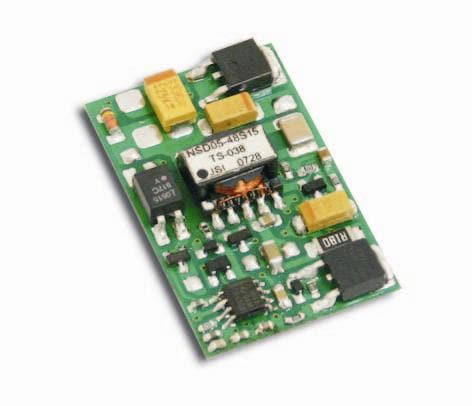

MEAN WELL NSD05-48S3 ອິສເອລເທດ 3.96W 48VIN 3.3VOUT

Width: 25.4 mm (1 in)

Height: 8.3 mm (0.327 in)

Length: 40.6 mm (1.598 in)

Industry: Industrial

Unit Weight: 7 g

Output Power: 3.96 W

Input Voltage: 18 V to 72 V

Mounting Style: Through Hole

Isolation Voltage: 1 kV

Number of Outputs: 1 Output

Input Voltage - Max: 72 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 1.2 A

Output Voltage-Channel 1: 3.3 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
