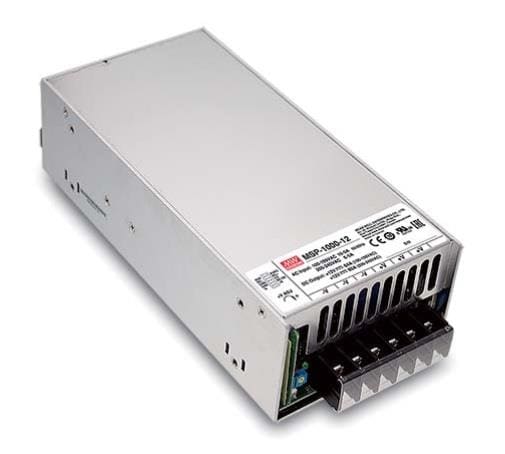

MEAN WELL MSP-1000-48 ຕົວແປປະຕິບັດ AC-DC 1008W 48V 21A MEDICAL PS

Width: 105 mm (4.134 in)

Height: 63.5 mm (2.5 in)

Length: 218 mm (8.583 in)

Industry: Medical

Approvals: ANSI/AAMI ES60601-1, EN55032, IEC60601-1

Compliance: ANSI/AAMI ES60601-1, EN55032, IEC60601-1

Efficiency: 94 %

Unit Weight: 1.53 kg

Output Power: 1.008 kW

Input Voltage: 90 VAC to 264 VAC, 127 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVrms

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 21 A

Output Voltage-Channel 1: 48 VDC

Operating Temperature Range: - 40 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
