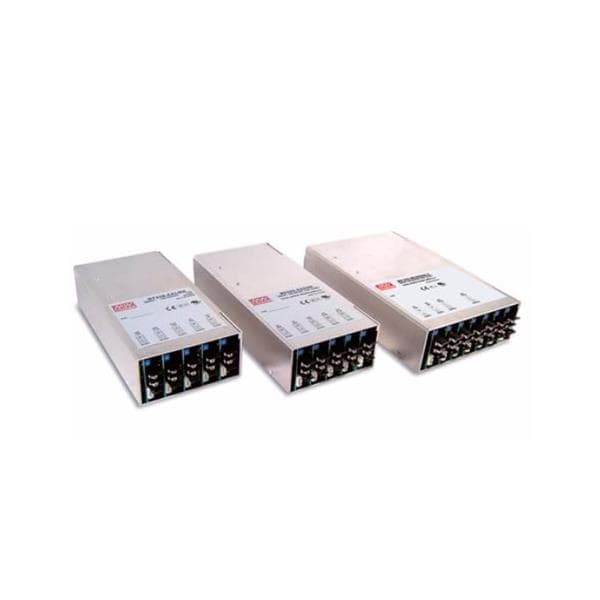

MEAN WELL MP650-H2HXM ອຸປະກອນຈົດພະລັງງານແບບແມ່ດູດ 650W Modular Power Supply

Width: 127 mm (5 in)

Height: 63.5 mm (2.5 in)

Length: 278 mm (10.945 in)

Industry: Industrial

Approvals: UL60950-1, TUV EN60950-1

Compliance: UL60950-1; TUV EN60950-1

Output Power: 650 W

Input Voltage: 85 VAC to 264 VAC, 120 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVrms

Number of Outputs: 5 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 6.5 A

Output Current-Channel 2: 12.5 A

Output Current-Channel 3: 2.7 A, 4 A

Output Current-Channel 4: 15 A

Output Voltage-Channel 1: 24 VDC

Output Voltage-Channel 2: 24 VDC

Output Voltage-Channel 3: 15 VDC

Output Voltage-Channel 4: 5 VDC

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
