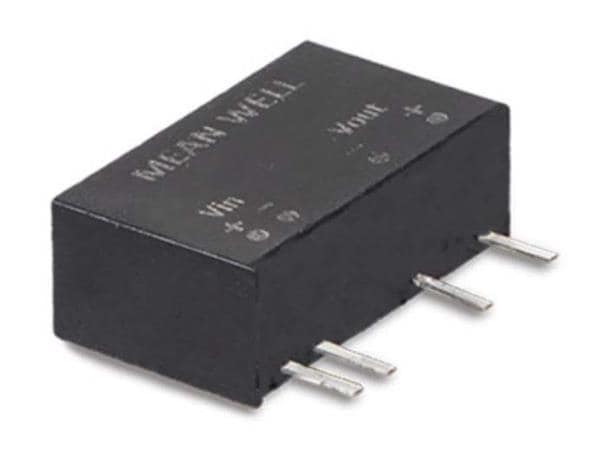

MEAN WELL MDS02L-12N ອິສເລເທດ 2W 5Vin 12Vout 17-167mA SIP7 ເກມດິກທີ່ບໍ່ມີການຄວບຄຸມ

Width: 7.1 mm (0.28 in)

Height: 11.5 mm (0.453 in)

Length: 19.7 mm (0.776 in)

Industry: Medical

Dimensions: 19.7 mm x 7.1 mm x 11.5 mm

Application: Medical Devices, Wireless Network

Unit Weight: 2.800 g

Output Power: 2 W

Input Voltage: 4.5 VDC to 5.5 VDC

Mounting Style: Through Hole

Isolation Voltage: 6 kV

Number of Outputs: 1 Output

Input Voltage - Max: 5.5 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 167 mA

Output Current-Channel 2: 167 mA

Output Voltage-Channel 1: 12 V

Output Voltage-Channel 2: - 12 V

Maximum Operating Temperature: + 95 C

Minimum Operating Temperature: - 40 C
