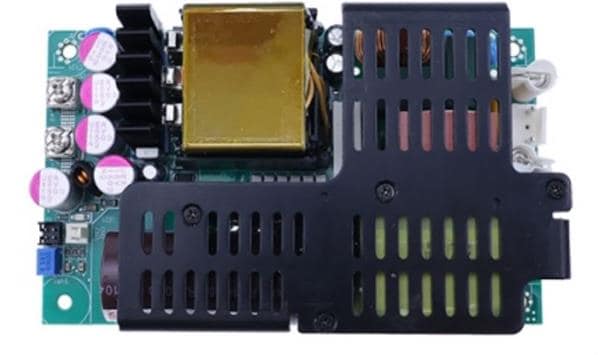

MEAN WELL LOP-600-18 Low Profile Open Frame Power Supply 599.4W 18V 33.3A 3x5 medical

Width: 76.2 mm (3 in)

Height: 33.5 mm (1.319 in)

Length: 127 mm (5 in)

Industry: Medical, Industrial

Approvals: EN60335-1, EN61588, IEC, UL

Dimensions: 127 mm x 76.2 mm x 33.5 mm

Efficiency: 94 %

Unit Weight: 480 g

Output Power: 600 W

Input Voltage: 80 VAC to 264 VAC, 113 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Number of Outputs: 1 Output

Power - Convection: 360 W

Power - Forced Air: 599.4 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 33.3 A

Output Voltage-Channel 1: 18 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C
