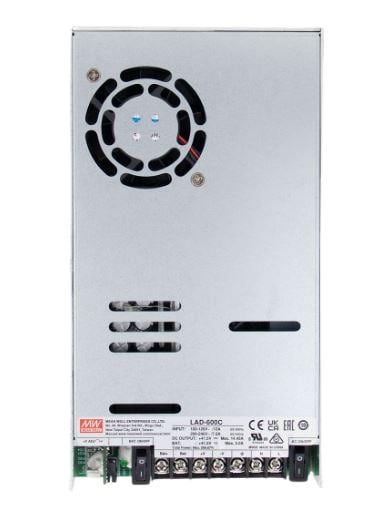

MEAN WELL LAD-600C ແຫຼ່ງພະລັງ AC/DC O/P +41.5V11.45A +41.5V3A

Width: 124 mm (4.882 in)

Height: 41 mm (1.614 in)

Length: 225 mm (8.858 in)

Industry: Industrial

Compliance: IEC62368-1, UL62368-1

Dimensions: 225 mm x 124 mm x 41 mm

Efficiency: 91 %

Unit Weight: 1.02 kg

Output Power: 599.67 W

Input Voltage: 90 VAC to 132 VAC, 240 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Number of Outputs: 2 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 11.45 A

Output Current-Channel 2: 3 A

Output Voltage-Channel 1: 41.5 VDC

Output Voltage-Channel 2: 41.5 VDC

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C
