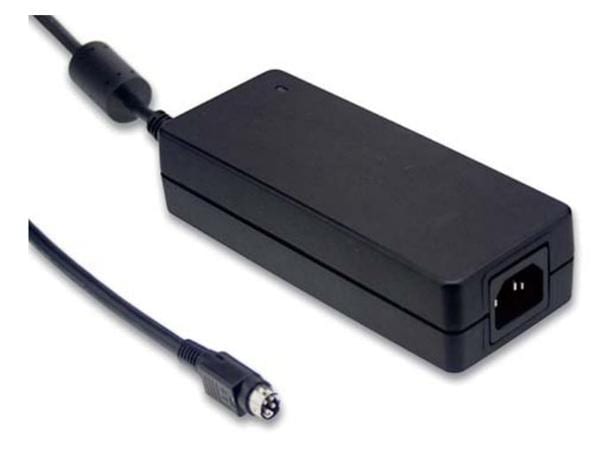

MEAN WELL GST160A36-R7B ອາເດັບເຕັບ AC ເບີ 36V4.44A;18AWGx4C/120cm,DIN 4PIN

Width: 72 mm

Height: 35 mm

Length: 175 mm

Region: Universal

Industry: Industrial

Approvals: AS/NZS, BIS, BSMI, CCC GB4943, CSA, EAC TP TC, KC, TUV, UL

Compliance: AS/NZS, BIS, BSMI, CCC GB4943, CSA, EAC TP TC, KC, TUV, UL

Efficiency: Level Vl

Unit Weight: 660 g

Output Power: 160 W

AC Inlet Type: C14

Input Voltage: 85 VAC to 264 VAC

Connector Type: DIN Connector

Mounting Style: Desktop

Load Regulation: Regulated

Number of Outputs: 1 Output

DC Output Connector: 4 Pin DIN Plug with Lock

DC Output Cord Length: 1.2 m

Output Current-Channel 1: 4.44 A

Output Voltage-Channel 1: 36 VDC

AC Plug included/required: Required

Operating Temperature Range: - 30 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
