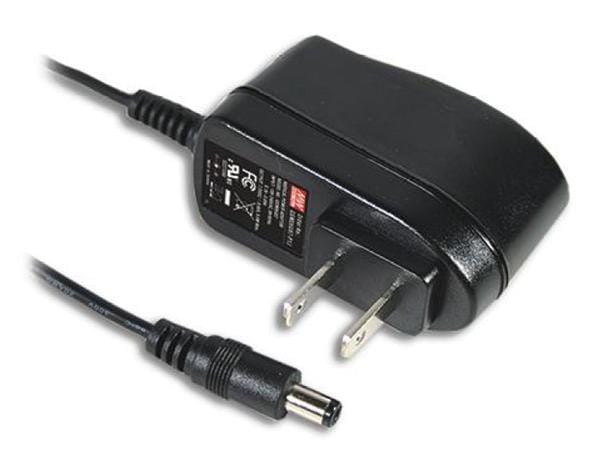

MEAN WELL GSM06U12-P1J ປລັກຕິດຕັ້ງ 6W 12V 0.5A USA Medical Adaptor

Width: 66 mm

Height: 42.5 mm

Length: 32 mm

Region: Universal

Industry: Medical

Approvals: ES60601-1, IEC60950-1

Compliance: ES60601-1, IEC60950-1

Efficiency: Level V

Unit Weight: 100 g

Output Power: 6 W

Input Voltage: 85 VAC to 264 VAC

Connector Type: Barrel Connector

Mounting Style: Wall Mount

Load Regulation: Regulated

Center Pin Length: 11.5 mm

Number of Outputs: 1 Output

DC Output Connector: 2.1 mm Barrel Plug (2.1x5.5)

Output Current-Channel 1: 500 mA

Output Voltage-Channel 1: 12 VDC

AC Plug included/required: Included
