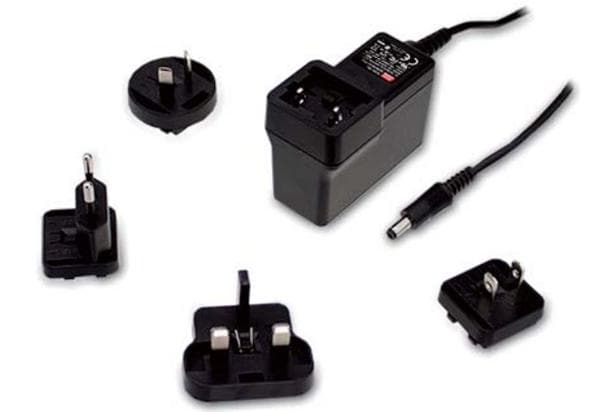

MEAN WELL GEM18I05-P1J ປລັກທີ່ສາມາດແທນກັນໄດ້ 15W 5V 3A ລະດັບການແພດ VI

Width: 39.1 mm

Height: 56.2 mm

Length: 75.5 mm

Region: Universal

Industry: Medical

Approvals: ANSI/AAMI ES60601-1 / 60601-1-11, TUV EN60601-1 / 60601-1-11

Compliance: ANSI/AAMI ES60601-1 / 60601-1-11, TUV EN60601-1 / 60601-1-11

Efficiency: Level VI

Unit Weight: 140 g

Output Power: 15 W

Input Voltage: 80 VAC to 264 VAC, 113 VDC to 370 VDC

Connector Type: Barrel Connector

Mounting Style: Wall Mount

Load Regulation: Regulated

Center Pin Length: 11.5 mm

Number of Outputs: 1 Output

DC Output Connector: 2.1 mm Barrel Plug (2.1x5.5)

DC Output Cord Length: 1 m

Output Current-Channel 1: 3 A

Output Voltage-Channel 1: 5 VDC

AC Plug included/required: Required
