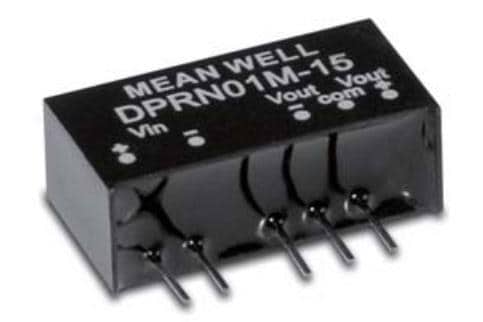

MEAN WELL DPRN01O-15 ອິສເອລເທດ 1W 48Vin +/-15Vout +/-0-34mA SIP Reg

Width: 7.1 mm (0.28 in)

Height: 10.14 mm (0.399 in)

Length: 19.6 mm (0.772 in)

Industry: Industrial

Compliance: EN55032

Unit Weight: 2.500 g

Output Power: 1 W

Input Voltage: 45.6 V to 52.8 V

Mounting Style: Through Hole

Isolation Voltage: 500 V

Number of Outputs: 2 Output

Input Voltage - Max: 52.8 V

Input Voltage - Min: 45.6 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 34 mA

Output Current-Channel 2: 34 mA

Output Voltage-Channel 1: 15 V

Output Voltage-Channel 2: - 15 V

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 40 C
