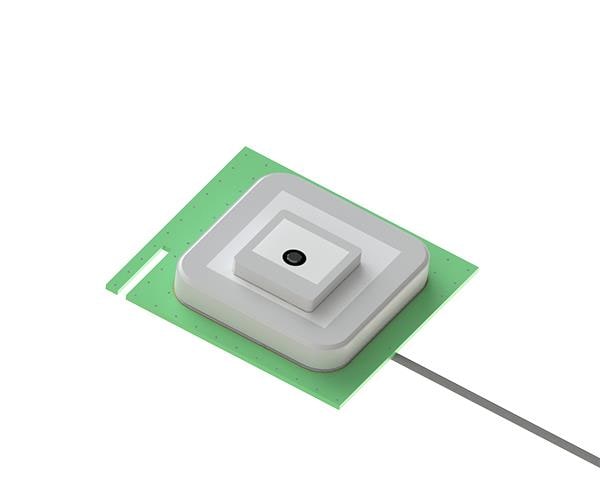

Maxtena MPA-254-WIFI ແນວຮັບສະຫນາມສະຫນາມ WIFI ປະກອບໃນ - 25mm x 4 mm

Gain: 1 dBi

Style: Stacked

Width: 25 mm

Height: 4 mm

Length: 25 mm

Impedance: 50 Ohms

Cable Type: 150 mm RF1.13

Application: Mobile Applications, Drones, Robotics, IoT Applications, VR/AR Applications, Industrial Controls

Cable Length: 150 mm

Polarization: Linear

Mounting Style: PCB Mount

Electrical Type: Embedded

Frequency Range: 2.4 GHz to 2.5 GHz, 5.7 GHz to 5.87 GHz

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.8 GHz

Mechanical Style: Patch

Maximum Frequency: 5.87 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - Sub GHz: RFID, IoT, ISM

Antenna Connector Type: U.FL

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, U-NII

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
