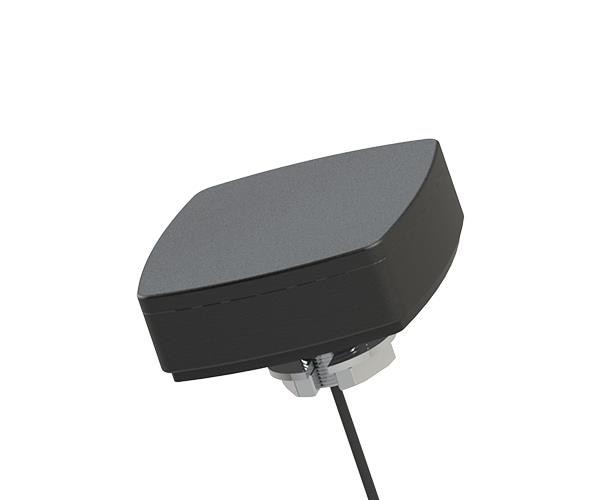

Maxtena MEA-LGI-SMA ອະນເທນາ MIMO 5GNR & Iridium GNSS - ຕິດຕູ້ດ້ວຍກຸມສະໝັກ

Gain: 2.3 dBi, 5.1 dBi, 2.6 dBi, 2.7 dBi, - 1.8 dB

VSWR: 2.6:1, 2.4:1, 2.7:1, 2.5:1, 1.6:1, 1.4:1

Style: Square

Width: 74 mm

Height: 25.6 mm

Length: 80 mm

IP Rating: IP67, IP69

Impedance: 50 Ohms

Cable Type: 2 M D302 x 2, 2 M D100

Application: IoT Applications, Telematic, Navigation, Satellite Communications, Cellular Applications

Polarization: Linear

Power Rating: 25 W, 24.3 W

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 6 Band

Center Frequency: 788.5 MHz, 2058.5 MHz, 4150 MHz, 5537.5 MHz, 1621.5 MHz, 1583.5 MHz

Mechanical Style: Module

Maximum Frequency: 5.925 GHz

Minimum Frequency: 617 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, U-NII

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: Galileo, GLONASS, GPS, QZSS

Protocol - WiFi - 802.11: LoRaWAN, Sigfox, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G NR, Cellular (NBIoT, LTE), GSM, UMTS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
