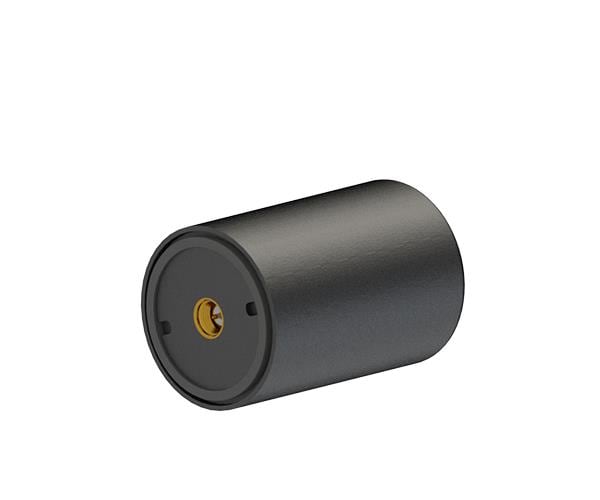

Maxtena M9HCT-A-SMA ເຄື່ອງຮັບສຽງແອັກຕິບ L1 L2 L5 ສາຍຄໍາ L-Band ເຄື່ອງຮັບສຽງແອັກຕິບຫຼາຍຄວາມຖືກຕ້ອງ

Gain: 1.5 dB, 1.1 dB, 0.5 dB

VSWR: 2.1, 1.1

Style: Stubby

Length: 51 mm

Diameter: 34 mm

IP Rating: IP67

Application: Autonomous Vehicles, Fleet Management, Asset Tracking

Polarization: RHCP

Mounting Style: Panel Mount

Frequency Range: 1.164 GHz to 1.189 GHz, 1.192 GHz to 1.231 GHz, 1.539 GHz to 1.559 GHz, 1.559 GHz to 1.606 GHz

Number of Bands: 4 Band

Center Frequency: 1.1765 GHz, 1.223 GHz, 1.5825 GHz

Mechanical Style: Whip

Maximum Frequency: 1.606 GHz

Minimum Frequency: 1.164 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GNSS, GPS

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
