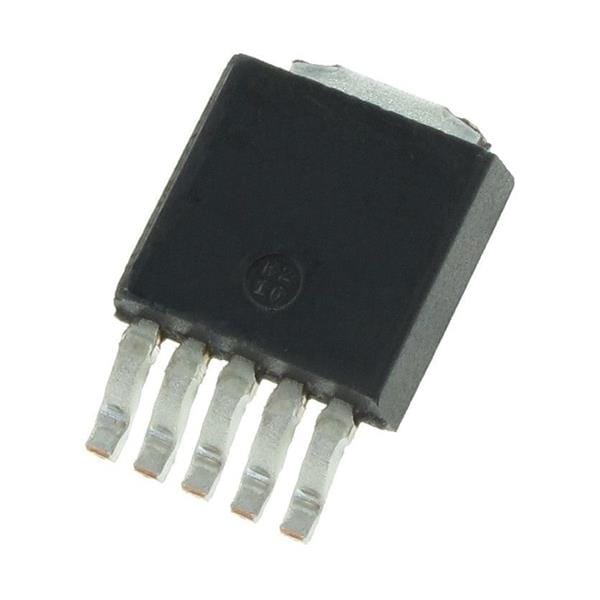

MaxLinear XRP6272ITC5TR-F ຕົວຄວບຄຸມແຮງແສງໄຟຟ້າ LDO 5V ຫຼື ປັບໄດ້ 2A LDO ສະຫຼຸບເສຍສຽງຕ່ຳ 5V ແລະ ອອກ ADJ

Width: 6.1 mm

Height: 2.38 mm (Max)

Length: 6.73 mm (Max)

Polarity: Positive

Tolerance: 2 %

Output Type: Adjustable, Fixed

Unit Weight: 4 g

Mounting Style: SMD/SMT

Output Current: 2 A

Output Voltage: 700 mV to 5.3 V, 5 V

Dropout Voltage: 480 mV

Line Regulation: 3 mV

Load Regulation: 5 mV

Number of Outputs: 1 Output

Quiescent Current: 30 uA

Reference Voltage: 700 mV

Moisture Sensitive: Yes

Input Voltage - Max: 6 V

Input Voltage - Min: 1.8 V

Output Voltage Range: 700 mV to 5.3 V

Dropout Voltage - Max: 960 mV

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 70 dB
