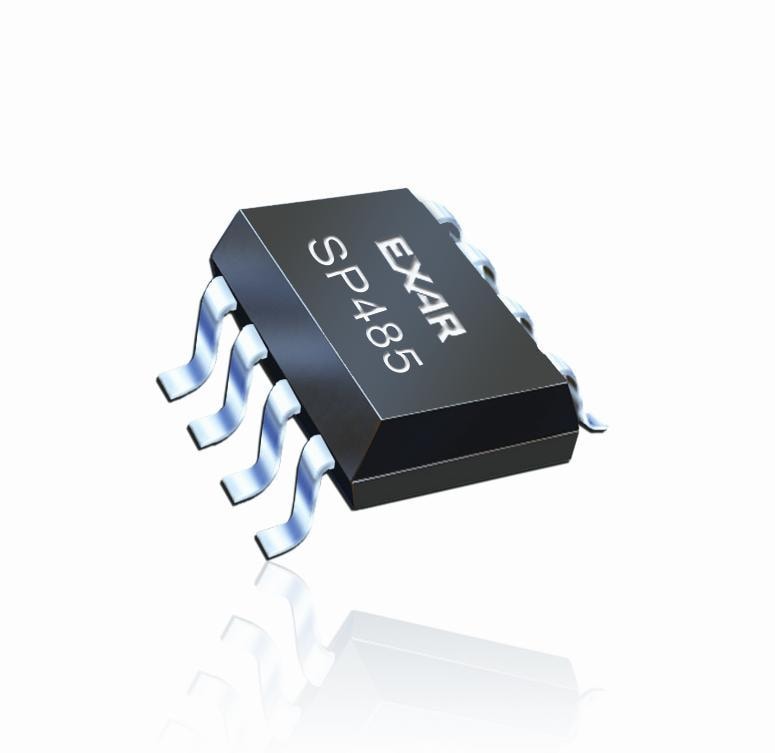

MaxLinear SP485CN-L Transceiver RS485 5000 kbps ອຸນຫະພູມ 0C ຫາ 70C

Duplex: Half Duplex

Function: Transceiver

Shutdown: No Shutdown

Data Rate: 5 Mb/s

Output Type: 3-State

Unit Weight: 143 mg

Input Voltage: - 7 V to 12 V

ESD Protection: 2 kV

Mounting Style: SMD/SMT

Output Current: 250 mA

Output Voltage: 1.5 V to 5 V

Number of Drivers: 1 Driver

Protocol Supported: RS-422, RS-485

Number of Receivers: 1 Receiver

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 4.75 V

Pd - Power Dissipation: 500 mW

Propagation Delay Time: 30 ns, 45 ns

Operating Supply Current: 900 uA

Operating Supply Voltage: 5 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
