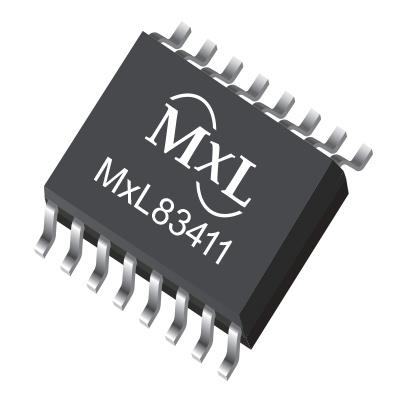

MaxLinear MXL83411E-AGA-R Monolithic Quadruple Differential Line RS-485/RS-422 Receivers Quad RS-485/422 receiver with ESD and EFT protection

Function: Receiver

Shutdown: No Shutdown

Data Rate: 10 Mb/s

Output Type: Active-High, Active-Low

ESD Protection: 8 kV, 15 kV

Mounting Style: SMD/SMT

Output Current: 40 mA

Protocol Supported: RS-422, RS-485

Number of Receivers: 4 Receiver

Supply Voltage - Max: 5 V

Supply Voltage - Min: 3.3 V

Propagation Delay Time: 10 ns

Operating Supply Current: 2.1 mA

Operating Supply Voltage: 3.3 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
