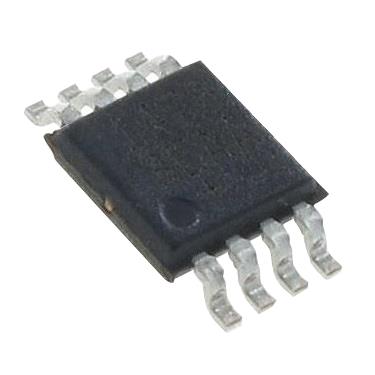

Maxim Integrated MAX2750AUA+ VCO 2.4GHz Monolithic Voltage-Controlled Osc
ຜູ້ຜະລິດ: Maxim Integrated Model: MAX2750AUA+ - ຕິດຕໍ່ພົວພັນ
Width: 3.05 mm
Height: 0.95 mm
Length: 3.05 mm
Pushing: 1.3 MHz/V
Frequency: 2.37 GHz to 2.47 GHz
Power - dBm: - 3 dBm
Unit Weight: 24.667 mg
2nd Harmonic: - 30 dBc
Current Rating: 21 mA
Mounting Style: SMD/SMT
Phase Noise Type: - 235 dBc/Hz
Termination Style: SMD/SMT
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 2.7 V
Tuning Voltage Range - Vt: 400 mVDC to 2.4 VDC
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
