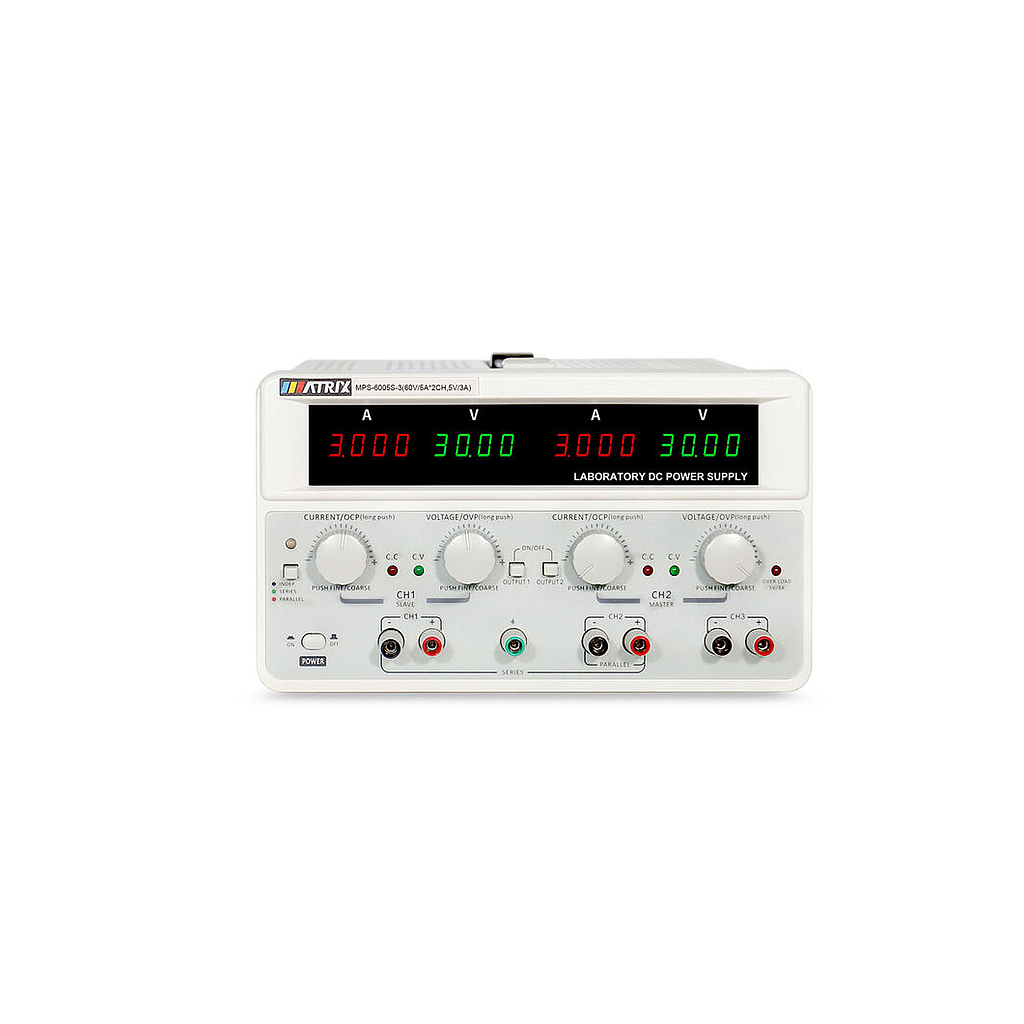

MATRIX MPS-6005S-3 ອຸປະກອນຈົດພະລັງງານ DC ສາມຊ່ອງ (60V/5A*2CH, 5V/3A, 615W)
Channel: CH1,CH2,CH3
Rated output voltage:
CH1/CH2: 0-60V
CH3: 5V
Rated output current:
CH1/CH2: 0-5A
CH3: 3A
Rated output power: 615W
Load regulation rate:
Voltage: <0.1%+5mV
Current: <0.2%+3mA
Line regulation rate:
Voltage: <0.1%+5mV
Current: <0.2%+3mA
Set value accuracy:
Voltage: ≤0.1%+2digit
Current: ≤0.2%+3mA
Readback value accuracy:
Voltage: ≤0.1%+2digit
Current: ≤0.2%+3mA
Readback resolution:
Voltage: 10mV
Current: 1 mA
Ripple and Noise:
Voltage: ≤10mVrms
Current: ≤5mArms
OVP: 0~62V+0.2%FS
Max voltage: 62V±0.2%
OCP: 0~5.1A+0.2%FS
Max current: 5.1A±0.2%
Temperature:
Operational environment: 0~40°C, ≤80%RH
Storage environment: -15-70℃, ≤80%RH
Size (W*H*D): 219x95x300mm
Weight(kg):4.5
