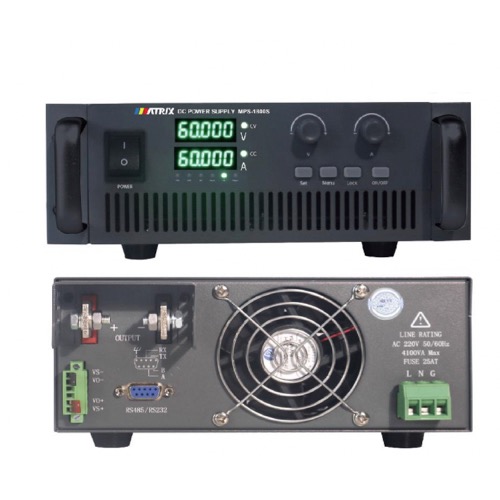

MATRIX MPS-3600S-30-120 ການສະຫນອງພະລັງງານໄຟຟ້າສູງ DC (0-30.000V, 0-120.00A, 3600W)
ຜູ້ຜະລິດ: MATRIX Model: MPS-3600S-30-120 - ຕິດຕໍ່ພົວພັນ
Voltage: 0-30.000V
Current: 0-120.00A
Power: 3600W
AC input: Single phase: AC220V±10%, 50Hz
DC output:
Output voltage: 0V-rating
Output current: 0A-rating
Output power: 0W-rating
Load regulation:
Voltage: ≤ 0.1%F.S+0.1%F.S
Current: ≤ 0.1% F.S+0.1%F.S
Setting value accuracy:
Voltage: ≤ 0.1%F.S+0.1%F.S
Current: ≤ 0.1%F.S+0.1%F.S
Readback value accuracy:
Voltage: ≤ 0.1% F.S+0.1%F.S
Current: ≤ 0.1% F.S+0.1%F.S
Ripple(20Hz-20MHz): voltage: Vrms≤0.2%F.S+50mV
Dynamic response time(10%-90% load): ≤5mS
Display method: 4 and a half digit meter (LED digital tube display)
Display resolution: Voltage 0.001V/ 0.01V/ 0.1V, Current 0.001A/ 0.01A/ 0.1A
Interface: RS232/RS485
Functional protection: OVP, OCP, OTP, Short circuit protection
Heat dissipation method: Adopting PWM speed regulating fan, air-cooled
Operating environment: Temperature 0 to 40°C ; Humidity 10%-85% RH
Environment: Temperature - 20 to 70°C; Humidity 10%-90% RH
Size (mm): 215 * 400 * 88 (W*D*H mm)
Weight (kg): 7.5
