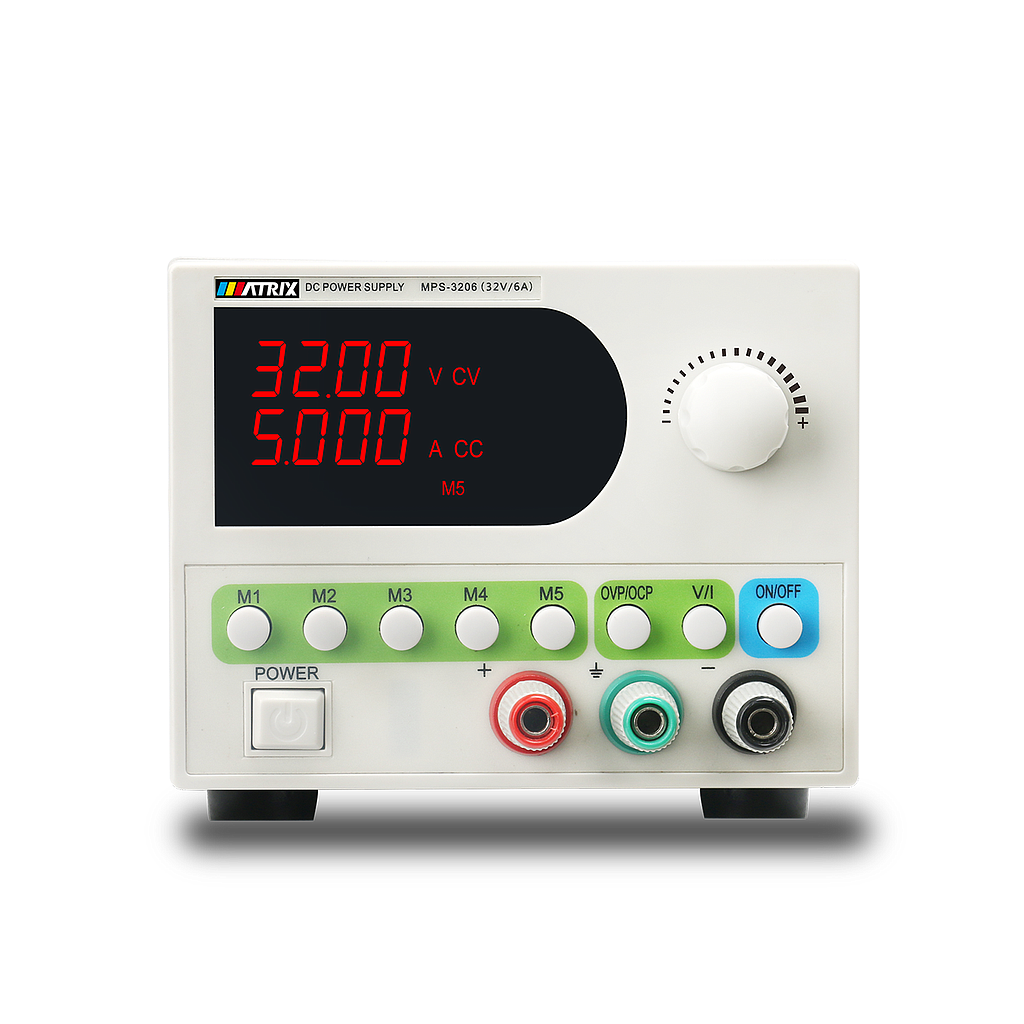

MATRIX MPS-3206 DC Switching Power Supply (32V, 6A)
Rated output voltage: 0-32V
Rated output current: 0-6A
Load regulation:
Voltage: 0.1% + 5mV
Electric current: 0.2% + 3mA
Power regulation:
Voltage: 0.01% + 5mV
Electric current: 0.2% + 3mA
Set accuracy:
Voltage: ≤0.1% + 1 byte
Electric current: ≤0.2% + 3mA
Readback accuracy:
Voltage: ≤0.1% + 1 byte
Electric current: ≤0.2% + 3 bytes
Readback resolution:
Voltage: 10mV
Electric current: 1mA
Ripple:
Voltage: 10mVrms
Electric current: 5mArms
OVP: 0-32V ± 0.2% FS
Maximum voltage: 32V ± 0.2%
OCP: 0-6.1A ± 0.2% FS
Maximum current: 6.1A ± 0.2%
Operating environment: 0 ~ 40 ° C≤80RH
Storage environment: -15 ~ 70 ° C≤80RH
Bare metal sizea (mm): 115*96*261
Packing size (mm): 167*153*317
Net weight (kg): 1.5
Gross weight (kg): 1.9
