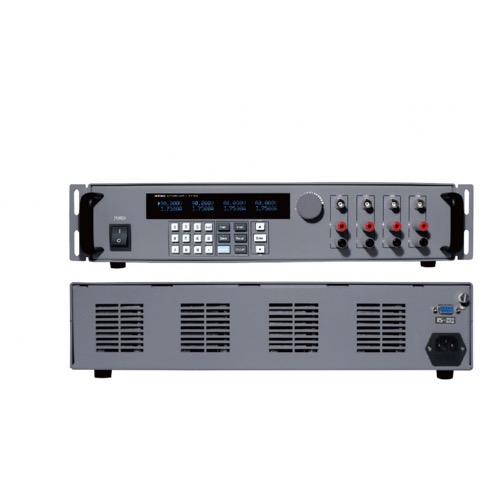

MATRIX MFP-4002 ການສະຫນອງພະລັງງານ DC ຫຼາຍຊ່ອງ (300W, 150V, 5A, 4CH)
Rated input voltage: AC 110V/220V±10%
Rated output power: 300W*4CH
Rated output voltage: 0~150V*4CH
Rated output current: 0~5A*4CH
Transformer mode: Switching power supply
Load regulation:
Voltage: ≤0.02%+5mV
Current: ≤0.02%+5mA
Line regulation:
Voltage: ≤0.02%+5mA
Current: ≤0.02%+5mA
Set value resolution:
Voltage: 1mV
Current: 0.1mA
Setting accuracy (25°C ± 5°C):
Voltage: ≤ 0.1% + 8mV
Current: ≤ 0.2% + 2mA
Readback resolution:
Voltage: 1mV
Current: 0.1mA
Readback accuracy(25°C ± 5°C):
Voltage: ≤ 0.1% + 8mV
Current: ≤ 0.2% + 2mA
Ripple:
Voltage: ≤ 8mV(rms)
Current: ≤ 3mA(rms)
Temperature:
Operating environment: 0 to 40°C ≤ 80% R.H
Storage environment: -15 to 70°C ≤ 80% R.H
Interface standard: RS232
Machine size (WxHxD): 440x90x340 mm
Net weight: 9 kg
