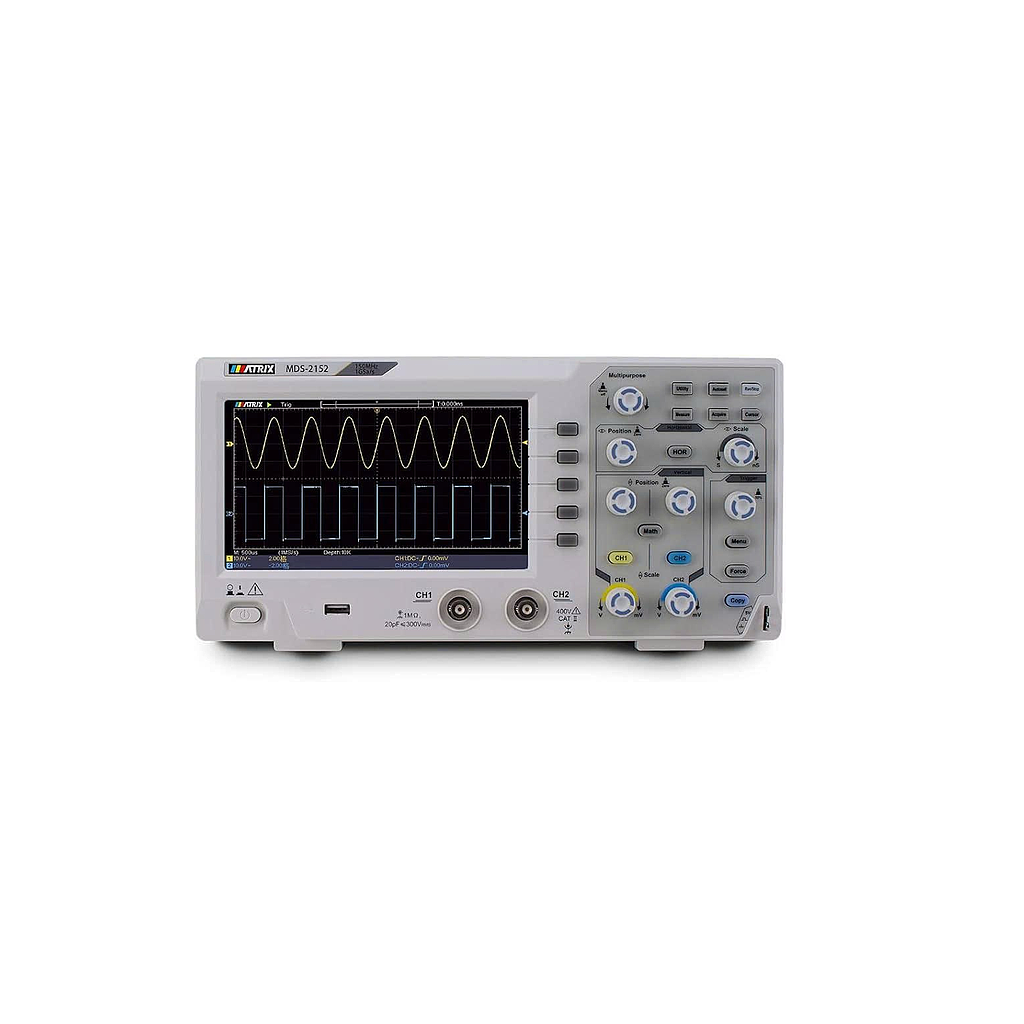

MATRIX MDS-2152 Super-economical Type Digital Storage Oscilloscope (150MHz, 2CH, 1GS/s)
Bandwidth: ≤ 150 MHz
Rise Time(at input, typical): ≤ 3.5 ns
Horizontal Scale: 2 ns/div – 1000 s/div, step by 1-2-5
Sample rate (real time): 1 GS/s
Display: 7" Colored LCD (Liquid Crystal Display),65536 colors, 800 x 480 pixels
Channel: 2 channels
Max Record length: 10K
Sampling rate / relay time accuracy: ±100 ppm
Input coupling: DC, AC, Ground
Input impedance: 1 MΩ±2%, in parallel with 20 pF±5 pF
Max. input voltage: 400V (DC+AC, PK - PK)
DC Gain Accuracy: ±3%
Vertical Sensitivity: 5 mV/div – 5 V/div
Trigger type: Edge, Video
Trigger mode: Auto, Normal, Single
Line/field frequency (Video): Support standard NTSC, PAL and SECAM broadcast systems
Automatic measurement: Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A→B, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, Phase, +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area.
Waveform Math: ＋, －, ×, ÷, FFT
Waveform storage: 16 waveforms
Communication interface: USB 2.0, USB flash disk storage
Power supply: 100 - 240 VACRMS，50/60 Hz，CATⅡ
Fuse: 2 A, T class, 250 V
Mechanical Specifications:
Dimension: 301 mm× 152 mm×70 mm (L*H*W)
Weight: About 1.1 kg
