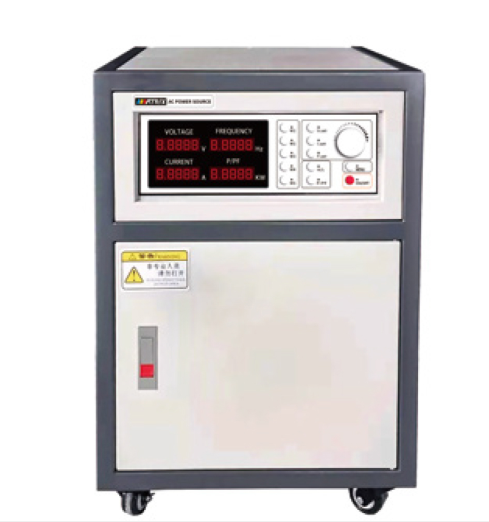

MATRIX APS-51050 ການສະຫນອງພະລັງງານ AC (50KVA, 1 phase)
Capacity: 50KVA
The output Voltage: 0-150V/0-300V automatic switching betweeen high nad low gears
Output current: (L=120V): 416A
(H= 240V): 208A
Frequency: 40-250hz
Size (W*H*D) : 1020x610x930
Weight: 290kg
Working mode: SPWM( Sine Pulse Width Modulation)
Output:
- Phase: 1 phase 2W
- Voltage: 0-150V/0-300V automatic switching between high and low gears
- Current: 42-840V
Frequency: 40-250hz
LED Display: Voltage VRMS, Current ARMS, Frequency, Power wattage, Power factor PF
Voltage resolution: 0.01V
Current resolution:
- Output < 10A, resolution 0.001, output 10A-100A, resolution 0.01A
- Output 100A-1000A, resolution 0.1A, outpur > 1000A, resolution 1A
Frequency resolution: 0.01Hz
Power regulation rate: ≤1%
Load stability: ≤1%
Load Regulation rate: ≤1%
Frequency stability: 0.01%
Waveform Distortion: ≤ 1% ( pure resistance load, other resistance 3%
