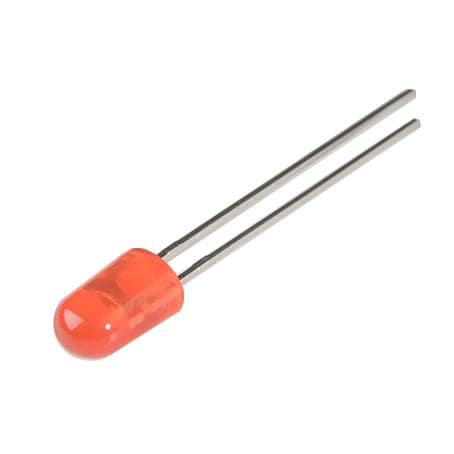

Marktech Optoelectronics MT5470E-UR ເຄື່ອງສົ່ງແສງ LED ສີເດັ່ນເດັ່ນ ເບີງເຫັນ 632nm

Width: 4.6 mm

Height: 7.8 mm

Length: 5.2 mm

LED Size: 5.2 mm x 4.6 mm x 7.8 mm

Lens Color: Red

Lens Shape: Oval

Power Rating: 130 mW

Configuration: Single

Viewing Angle: 40 deg x 70 deg

Mounting Style: Through Hole

Lens Dimensions: 5.2 mm x 4.6 mm

Lens Transparency: Diffused

Illumination Color: Hyper Red

Luminous Intensity: 2.13 cd

Moisture Sensitive: Yes

If - Forward Current: 20 mA

Vf - Forward Voltage: 2.4 V

Vr - Reverse Voltage: 5 V

Wavelength/Color Temperature: 632 nm

Maximum Operating Temperature: + 95 C

Minimum Operating Temperature: - 40 C
