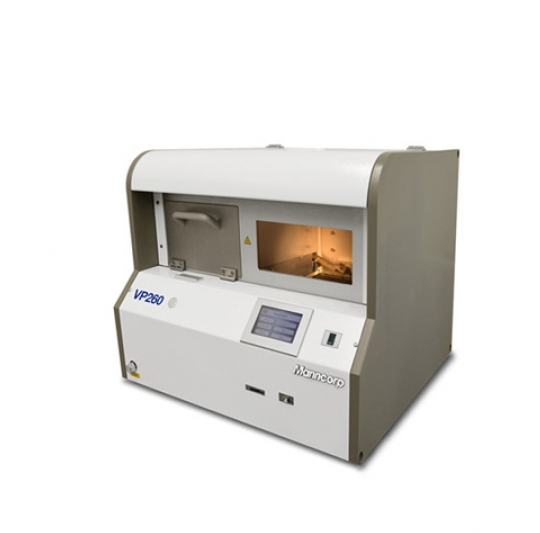

Manncorp VP260 Bench Top Vapor Phase

Manufacturer: Manncorp - USA

Model: VP260

Origin: China

Warranty: 12 months

Max. PCB Size:300 x 260 x 70 mm (11.8" x 10.2" x 2.75")

Fluid Capacity:3 Kg (6.6 lbs)

Avg. Fluid Consumption:1.5 – 2 g/cycle

Cooling Water Flow Requirement:1 l/min (0.26 gal/min).

Cooling Water Supply: 2.5 – 4.0 bar (35 – 60 psi) Tap water or recirculating chiller

Startup Time:15-20 min

Avg. Cycle Time:3 – 5 min (profile dependent)

Voltage Requirements:208V, three-phase, 50/60 Hz

Power Consumption:2.1 KW (Soldering); 0.9 KW (Standby Mode)

Dimensions (L x W x H):770 x 710 x 680 mm (30.3" x 28" x 26.8")

Net Weight:110 Kg (243 lbs)
