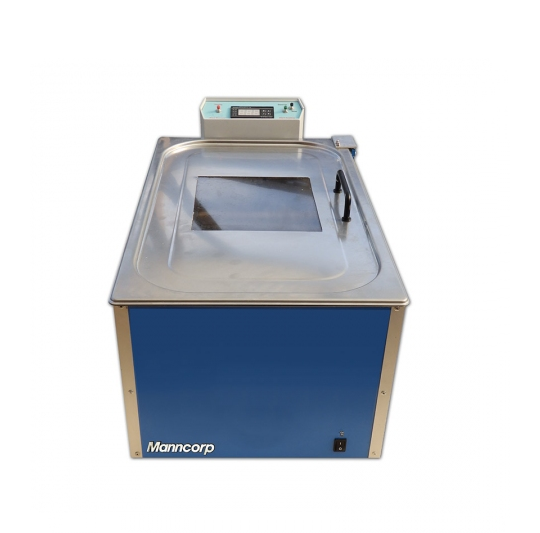

Manufacturer: Manncorp - USA
Model: VP230
Origin: China
Warranty: 12 months
Width: 11.2" (285 mm)
Depth: 23.8" (605 mm)
Height: 17.7" (450mm)
Weight: 33 lbs. (15 kg)
Max. PCB Size: 16.9” x 9.1” x .8” (430 x 230 x 20 mm)
Standard Cycle Time: 10-15 Minutes (including heating up & cooling down)
Standard Reflow Time (TAL Time Above Liquids): 3 – 50 Seconds (max 70 Seconds)
Process Temperature (depends on medium type): 150°C up to 240°C = 302°F up to 464°F
Solder Profiles: Adjustable temperature profiles in the pre-heating zone(CVPRS*)
Micro USB Interface: for the transfer of solder profile data to PC
Cooling: Forced Air cooling down to 70°C = 158°F
Soldering Fluid Filling: 2 lbs (0.9 kg)
Water Connection: 1/2"
Power Supply: 220-240 VAC, 1.25 kW, 6 A
