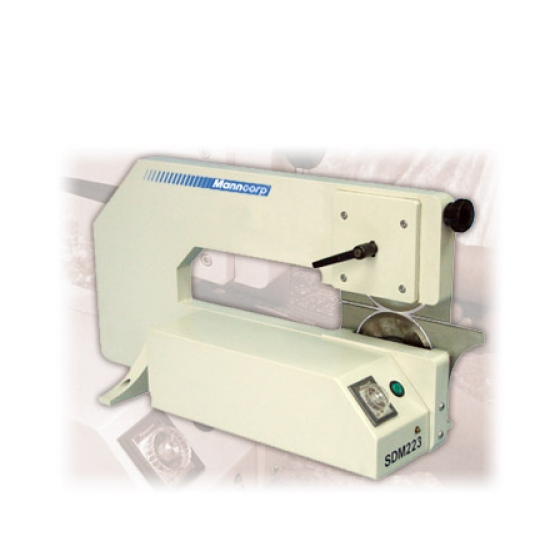

Manufacturer: Manncorp - USA
Model: SDM-223
Origin: China
Warranty: 12 months
PCB Thickness: 1.0 mm to 3.0 mm
Maximum Depaneling Dimensions: 400 mm (15.7")
V-Scoring Lines:
Depth of scoring (A): ≥ 0.25 mm
Remaining PCB thickness (B): 1.0 mm max
Component from scoring (C): ≥ 1 mm
Scoring angle θ: ≥ 20˚ (typical)
Max. component height (D): 32 mm
Depaneling Mode: Motorized
Separating Speed: Adjustable from 0 to 350 mm/sec (13.8"/sec)
Production Rate: Low to moderate volume
Scoring Angle: 20˚
Minimum Component Distance from V-Groove: 1 mm
Maximum Component Height: 32 mm (1.26")
PCB Materials: FR4, CEM3, etc.
Power: 110 V, 60 Hz 1.6 A
Dimensions (L x W x H): 260 mm x 653 mm x 346 mm (10.2" x 25.7" x 13.6")
Net Weight: 48 kg (106 lbs)
Shipping Weight: 73 kg (161 lbs)
