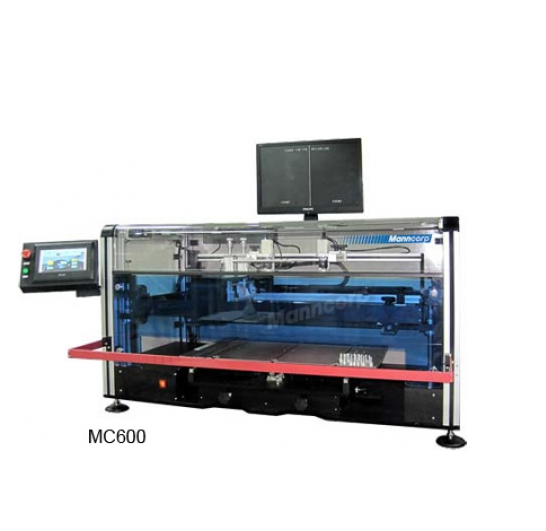

Manncorp MC600 Semiautomatic Stencil Printer

Manufacturer: Manncorp - USA

Model: MC600

Origin: China

Warranty: 12 months

Stencil Frame Size: 350 x 350mm to 736 x 470mm

Max. Printing Area: 600mm x 400mm

Max. Board Size: 650mm x 410mm

X- and Y-Axes Range: +/- 13 mm

Theta Rotation: ± 3.5°

Underside Clearance: 25 mm

Z-axis Range: 0 - 35 mm

Registration Repeatability: ± 0.01 mm

Power Requirements: 220VAC 50-60 Hz

Overall Dimensions (L x W x H):1064mm x 1006mm x 851mm

Machine Weight: 108kg
