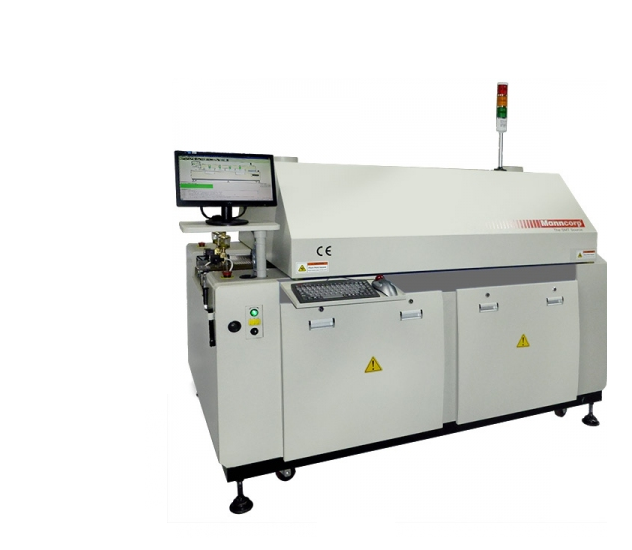

Manncorp CR-4000C 4-Zone SMT Reflow Oven

Manufacturer: Manncorp - US

Model: CR-4000C

Origin: China

Warranty: 12 months

Lead Free:Yes

Nitrogen Available:No

Mesh Belt Width:20" (500mm)

Pin Conveyor:16" Max. (400mm)/ Hand Crank. Power Adjust (optional)

Conveyor Speed (per min);7.8-35.4" (200-900mm)

SMEMA Compatible: Optional

Component Max. Height:30mm upper, 25mm lower

Forced Convection:Yes

Number of Heating Zones:4 Independently Controlled Topside Convection Zones; 2 Lower Convection Zones Controlled by Topside; 1 Cooling Zone

Heated Tunnel Length:52" (1320 mm)

Delta T:±2° C

PID*:Yes

Max Temperature:300° C

Ramp Time (from cold start):< 15 min

Flux Management System:No

Control:PC

On-Board Profiling:Yes

Dimensions:2000 mm L x 1200 mm W x 1450 mm H (79" L x 47.2" W x 57" H)

Weight:approx. 950 kg (2095 lbs.)

Power:220 V, 3-Phase, 60 A, 19KW

Required Active Exhaust:400CFM per port

# of Exhaust Vents:2

Battery Backup:UPS Uninterruptible Power Supply for Conveyor & PC

Hood Opening Mechanism:Automatic Raise and Lower
