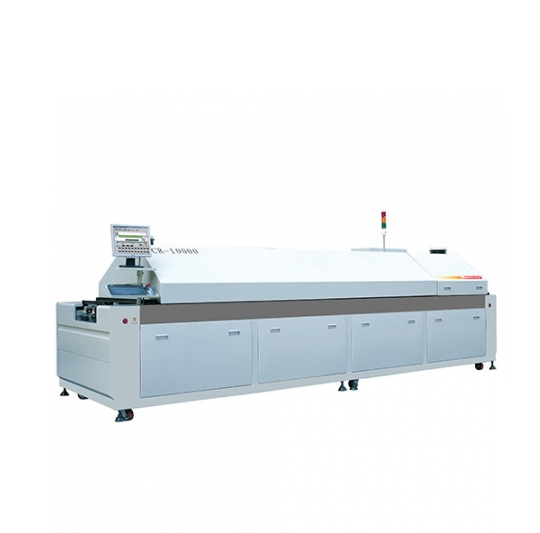

Manncorp CR-10000 10-Zone SMT Reflow Oven

Manufacturer: Manncorp - USA

Model: CR-10000

Origin: China

Warranty: 12 months

General

Lead Free Compatible:Yes

Tin Lead (SnPb) Compatible:Yes

Nitrogen Atmosphere Compatible:Optional

Double-Sided Board Processing:Yes

CE Compliance:Yes

SMEMA Compatible:Optional

Board Handling

Mesh Belt Conveyor:Standard

Mesh Belt Width:22.4" (570mm)

Process Clearance Above Mesh Belt:2.5" (65mm)

Chain-Driven Pin Conveyor:Standard

Pin Conveyor Max. Width:17.7" (450mm)

Pin Conveyor Min. Width:1.97" (50mm)

Auto Adjust Pin Conveyor:Optional

Clearance Above Conveyor Pins:1.18" (30mm)

Clearance Below Conveyor Pins:.98" (25mm)

Powered Center Support:Optional

Automatic Chain Lubrication:Yes

Conveyor Speed:16-71"/min (400-1800mm/min)

Conveyor Height: 35.4 ±0.8" (900mm ±20mm)

Conveyor Direction:Left to Right

Component Max. Height:30mm upper, 25mm lower

Heating

Forced Hot Air Convection:Yes

Number of Independently Controlled Heating Zones:20 total

10 upper, 10 lower

Total Heated Length:106" (2700 mm)

Number of Oven Convection Motors:20 Power: 120W x 20

Delta T:±2° C

Temperature Controls

PID (Proportional-Integral-Differential):Yes

Temperature Control Accuracy:±1° C

PCB Temperature Tolerance:±2° C

Temperature Range:Ambient -350° C

Ramping Time (from cold start):Approximately 25-30 min

Profiling / Thermocouple Channels:3

Cooling

Standard Cooling Method:Air

Internal Chilled Water Cooling:Optional

Number of Cooling Zones:1 (2 with water cooling)

Cooling Tunnel Length:24.4" (620 mm)

Operating System and User Interface

Windows Compatible PC:Yes

Touch Screen LCD:No

Language:English

On-Screen Thermal Profiling and Parameter Setting:Yes

Print Capability:Yes

Data Logging & Event Recording:Yes

Alarms:Audible, Visual (Light Tower) and On-Screen Display

Dimensions & Physical Characteristics

Length:217" (5500 mm)

Width:59.4" (1510 mm)

Height:61" (1550 mm)

Net Weight:4740 lbs. (2150 kg)

Utilities

Power Supply:220 VAC 3-Phase, 122A

Number of Exhaust Vents:3

Exhaust Venting Volume:400CFM per port

Conveyor & PC Power Supply:Uninterruptible Power Supply for Conveyor & PC

Hood Opening Mechanism:Automatic Raise and Lower
