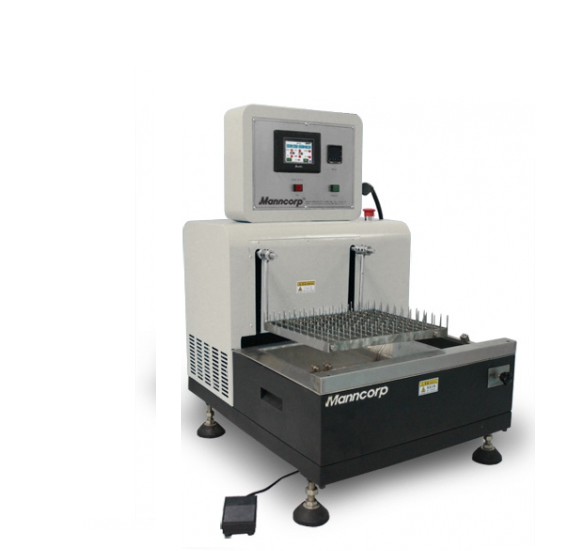

Manncorp Auto-Dip 3530-TS Dip Soldering Machine

Manufacturer: Manncorp - USA

Model: Auto-Dip 3530-TS

Origin: China

Warranty: 12 months

PCB Size:Finger-Type PCB Holder:

250 mm x 220 mm (9.8" x 8.6") max.

50 mm x 50 mm (1.9" x 1.9") min.

Pin-Type PCB Holder:

350 mm x 300 mm (13.8" x 11.8") max.

60 mm x 60 mm (2.4" x 2.4") min.

Solder Pot Size:400 mm W x 340 mm D x 80 mm H (15.75" x 13.4" x 3.15")

Solder Pot Capacity:approx. 70 Kg (154 lbs.) Lead-Free SAC; approx. 85 Kg (187 lbs.) SnPb

Solder Pot Temperature:recommended 285°C (545°F) Lead-Free SAC; recommended 265°C (50 °F) SnPb; 450°C (842°F) max.

Solder Dwell Time:1-10 sec.

Preheat Time:0-120 sec.

Overall Dimensions:

Base Unit: 600 mm W x 750 mm D x 460 mm H (23.6" x 29.5" x 18.1")

Touchscreen Console: 400 mm W x 120 mm D x 280 mm H (15.75" x 4.7" x 11")

Weight:

Base Unit: 78 Kg (172 lbs.)

Console: 5 Kg (11 lbs.)

Shipping Weight:Approx. 287 lbs. (130 kgs)

Power Requirements:220V, Single Phase, 50/60 Hz, 20A, 3.6KW
