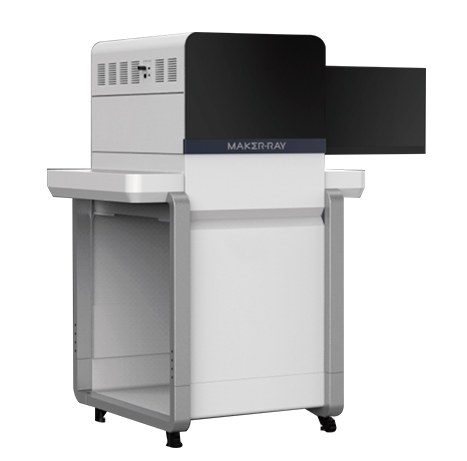

Maker-Ray AIS203-12C On-line PCBA AOI ສໍາລັບອົງປະກອບ DIP

PCB Size：50x50mm ~ 400x300mm

Camera ： 12MP color

Light source ： White

FOV ： 400 * 300mm

Resolution: 90um

Communication method: SMEMA

Intel i5 . CPU

Display Card: Nvida . Standalone GPU Acceleration Card

Memory ： 8GDDR, 256G SSD + 2T Mechanical HD

Power supply ： AC 220，200W

Dimensions (L * H * W) ： 715 * (1315-1700) * (760-1210) mm

Net weight：100KG

It captures board image in real time by high precision color industrial camera.

Adopt Convolutional Neural Network (CNN) algorithm to process images.

Judge defects of components intelligently.

Defect Type：Wrong part, missing part, reverse polarity and other defects of DIP element
