UV Light: Built-in drawer type UV Transilluminator 312(302)nm
Camera: 1/2.5" 5M Pixel Monochrome sensor
Pixels Size: 2.2μmx2.2μm
Lens (Camera): 6mm, F1.2
Camera Video Output: 12-bit
Filter (Camera) *Ordered separately: Optical EtBr Filter / Optical SYBR Green Filter / Yellow Amber Filter / Orange Amber Filter
Image Storage: PC
Software Support: Window 10 / 8 / 7 (64bit & 32bit) / XP / Vista
Cabinet: Pull out, sliding transilluminator
Field Of View (WxL): Approx. 10.2"x8.3" (260x210mm)
Dimension (WxLxH): Approx. 16.1"x15.9"x22.4" (410x405x570mm)
Weight: Approx. 54lbs. (24.5kg)
Display: LED indicator light
Viewing Window: Built-in UV viewing window
Window Filter: Built-in Viewing Window Amber Filter 580nm
Light : White light (standard)
Optional Accessory: White Light Plate (power built-in); Blue light (power built-in) 470nm
Safety: CE, FCC
PC Connection: USB port
1 D Analysis Software: Cat. No. MBE-IMG-SW included
Saved Image: BMP/JPEG/PNG/TIFF, 8 bit; PNG/TIFF, 16 bit
Rated Voltage: 100-240V~, 50/60Hz, 2A
* iPad and PC is not included.
* MS 1D Analysis Software (MBE-IMG-SW) is included in UVCI-1100 for image capture and analysis .

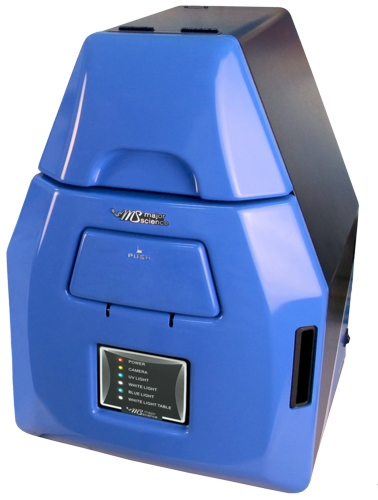

The SmartView Pro 1100 provides the basic feature and standard operation. All important features such as safety UV door, UV safety-cutoff switch function, 1D analysis software and are included as standard. 1D analysis software can be used for DNA/RNA gels and SDS page images observation and capture. Moreover, it can be used as an image analysis software for DNA/RNA gels and dot blotting. Blue light module, white light plate and optical and amber filters are available for a variety of applications. Enjoy the most compact CMOS imaging system for all of your laboratory work.
