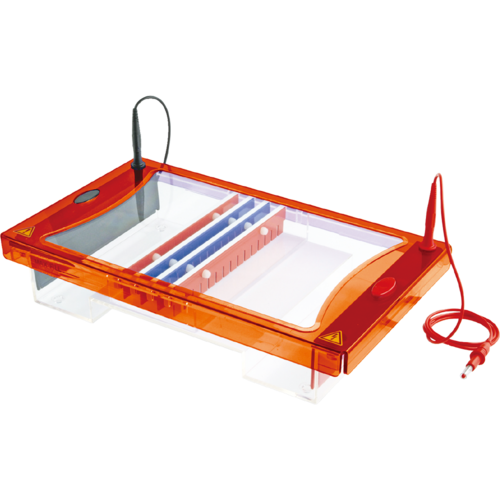

Major Science ME20-25 Maxi Horizontal Gel ລະບົບ Electrophoresis (395x230x90mm; ME20-25)

Dimension (WxLxH): 15.6"x9.1"x3.5" (395x230x90mm)

Gel Dimension (WxL): 7.9"x9.8" (200x250mm)

Maximum Sample:550 for 7.9"x9.8" (200x250mm)Tray (11x50 sample combs)

Buffer Volume: 0.32gal (1200ml)

Construction:Injection molded construction; Durable, leak proof environment for complete safety and long life

Cassette Type Electrode: Inexpensive, easy to replace

Made of 99.99% corrosion resistant pure platinum

Electrical Safety: Lid can only be fastened in one way

Upon lid removal, power is disconnected from buffer chamber

Rapid Casting Gel: use casting dams

Maxi is primarily designed for resolution of high throughput of samples as in cloning or PCR experiments. Maxi allows ultra high-resolution separations over extended runs. Tray sizes correspond to standard blotter sizes. It also allows for easy sample transfer onto a membrane for further analysis. Three tray sizes are available, 200x200mm, 200x250mm and 200x100mm. Multi-channel pipette compatible combs for up to 40 samples each facilitate speedy loading of up to 440 samples per gel. 50 sample combs (not multi-channel pipette compatible) allow maximum sample capability of 550 samples per gel.
