DI-01 Spec.
Multi-Power Source For camera, Inner light lamp, TFT monitor
Inner White Light: 2 white LED, 3 watt/LED
Safety Device: Safety door switch
Dimension (WxLxH): 11.4"x13.3"x15.9" (290x339x403mm)
Material: Painted metal
Rated Voltage: 110/220V~, 50/60Hz, 1.6A
Weight: Approx. 12.9lb (5.8kg)
Camera Adapter: Aluminum
DI Darkroom
Dimension (WxLxH): 11.4"x13.3"x15.7" (290x339x398mm)
Weight: Approx. 11.9lb (5.4kg)
Camera Spec.
Camera Type: 24.1MP digital camera, Wi-Fi function
Effective Pixels: Approx. 24.1 megapixels (Total Pixels Approx. 25.8 megapixels)
Sensor: 22.3 x 14.9mm CMOS sensor
Max. Aperture: f/3.5-6.3 (IS STM Lens)
Shutter Speed: 30 - 1/4000 sec (1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
Storage Media: SD memory card, Wi-Fi to PC, Smartphone or Tablet
Computer Interface: Hi Speed USB (Micro), HDMI(Micro), WiFi connection
Video Out : Full HD / HD / MP4 / 4K
Image Resolution: (3:2)6000x4000
Lens 35mm film equivalent to 1.6x the focal length
File Format: Designed rule for Camera File system 2.0
Data Type:
JPEG, RAW(CR3 14 bit)
RAW+JPEG, simultaneous recording possible
Monitor
Type 8" TFT LCD Monitor
Resolution: 1024x600 pixels
Brightness: 300cd / m2
Constant Ratio : 700:1
Display Mode: NTSC / PAL auto switch

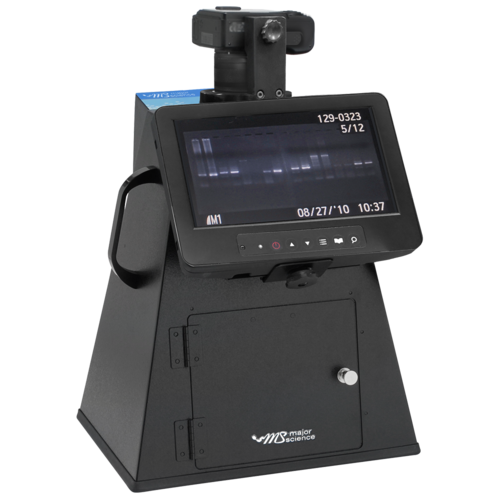

The Digimage System is a simple, compact gel documentation system with a rear digital control panel. It contains a digital camera with a superb resolution of 24.1 megapixels. The image is viewed from a large 8” TFT colorful screen with monitor purpose only, for a lab with limited space and low budget requirements, the Digimage System is definitely your top choice since it can be operated without computer. A variety of images can be captured including: agarose and other fluorescent gels, colorimetric gels, auto radiography film, and blotting membranes. A safety switch is equipped to turn off the UV Transilluminator automatically when the front door is opened. Files can be saved in a variety of formats, including RAW format, for transfer to a computer for storage and analysis.
