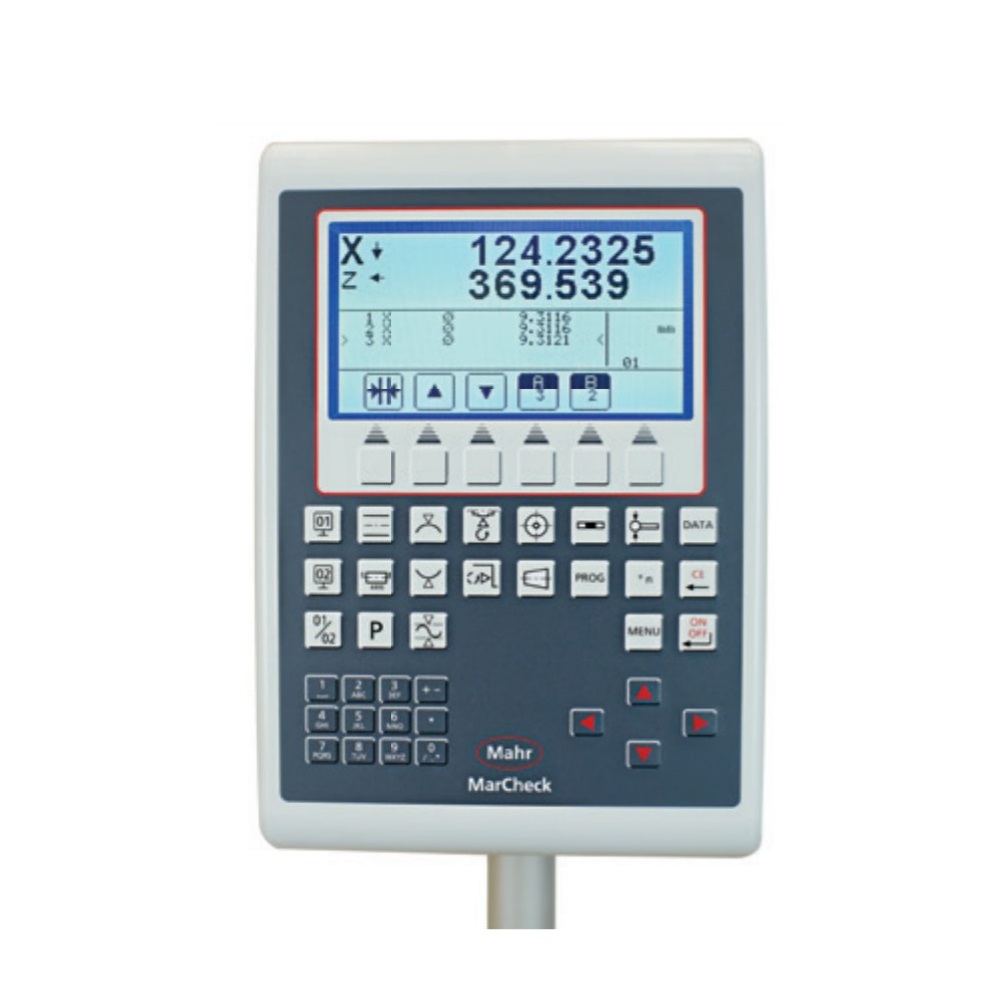

Mahr MarCheck ການສະແດງມູນຄ່າທີ່ວັດແທກໄດ້ສໍາລັບ MAN Shaft (Z:400mm-2400mm,X:120mm/220mm)

Measuring range length (Z) (mm):400 / 800 / 1200 / 1600 / 2000 / 2400

Measuring range diameter (X) (mm):120 or 220

Length/diameter resolution (mm):0.0001

Angle resolution (°): 0.001

Length error limit (Z) (µm): (3 + L/100) µm, L (length) in mm

Diameter error limit (X) (µm): (0.8 + L/100) µm, L (length) in mm

Lens:Optical measuring system (OMS) with matrix camera and software

Workpiece weight (max.) (kg):20 / 60
