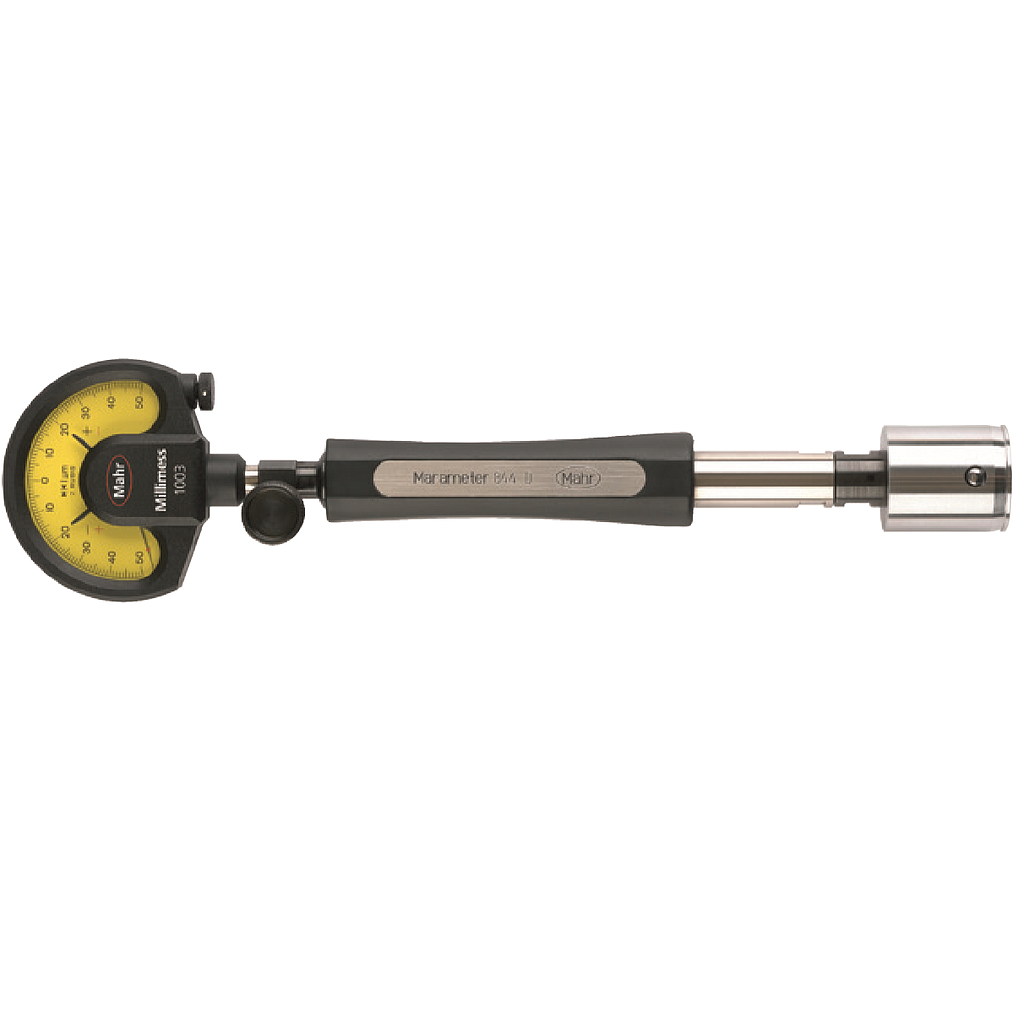

For rapid testing of diameter, roundness and conicity of bores
Product type: 844 Dkr
Nominal size: 8.000 – 16.000mm
Measuring span: 0.15mm
Design: For throughbores
Manufacturing tolerance: – 0.02 / – 0.04mm
Linearity deviation fe: 1%, min. 1 µm
Repeatability fw: 1µm
Hysteresis fu: 0.4µm
Accessories:
Millimess 0.5 µm, ± 25 µm, type 1002
Millimess 1 µm, ± 50 µm, type 1003
Millimess 5 µm, ± 130 µm, type 1004
Digital indicator, 0.0005 mm, 12.5 mm, type 1086 R
Digital indicator, 0.0005 mm, 12.5 mm, type 1086 Ri
M10 x 1 Standard holder - standard version, type 844 Dg
M6 x 0.75 Holder for inductive measuring probes, type 844 Dge
M10 x 1 Holder for inductive measuring probes, type 844 Dge
M10 x 1 Short holder - short version, type 844 Dgk
M10 x 1 Right angle attachment, L = 36.7 mm, H = 17 mm, type 844 Dw
M6 x 0.75 Standard measuring instrument holder, type 844 Kg
M6 x 0.75 Right angle attachment, L = 26.5 mm, H = 22.5 mm, type 844 Kw
Compact amplifier, type C 1200
M 2.5 Inductive probe, ± 2 mm, type P2004 M
Compact column amplifier, type S 1840 M
