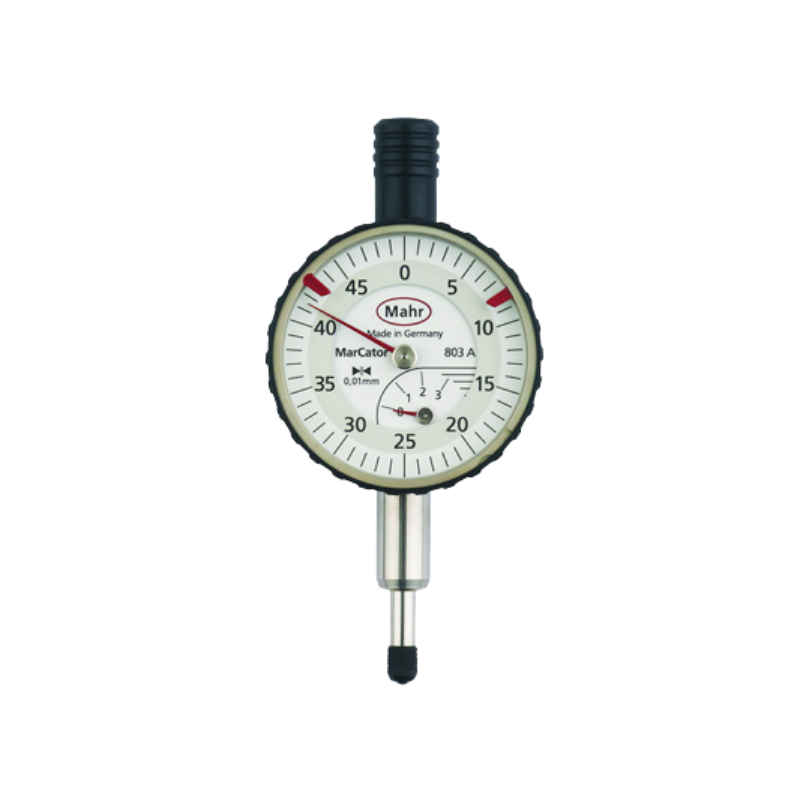

Mahr 4324050DKS ຕົວຊີ້ບອກສາຍກົນຈັກ (803 A, 3mm)

Measuring span: 3 mm

Product type: 803 A

Graduation value: 0.01mm

Standard: DIN 878

Type of dial face: 0-50

Range per rev.: 0.5 mm

Error limit measuring range: 10 µm

Error limit 1 revolution: 9 µm

Error limit 1/2 revolution: 8 µm

Error limit 1/10 revolution: 5 µm

Measuring value hysteresis fu: 3 µm

Repeatability fw: 3 µm

Overtravel: 0.1 mm

Scale diameter: 34 mm

Dial color: White

Dimensions: a 40 mm | b 20.6 mm | c 6.8 mm | d 37 mm | e 83 mm | f 15 mm | g 8 mm
