Mahr 4311060 ຕົວຊີ້ວັດການໂທ (810 AT, 10mm)

Product type 810 AT

Measuring span: 10mm

Graduation value: 0.01mm

Type of dial face: 100-0

Range per rev.: 1mm

Error limit: 15µm

Error limit, 1 revolution: 10µm

Error limit, 1/2 revolution: 9µm

Error limit, 1/10 revolution: 5µm

Repeatability fw: 3µm

Hysteresis fu: 3µm

Overtravel: 0.8mm

Measuring force incoming measuring pin N: 0.7 – 1.3

Standard: DIN 878

Shockproof movement: no

Lifting protection cap: yes

Reverse measuring force direction: no

Dial color: White

Package contains: case

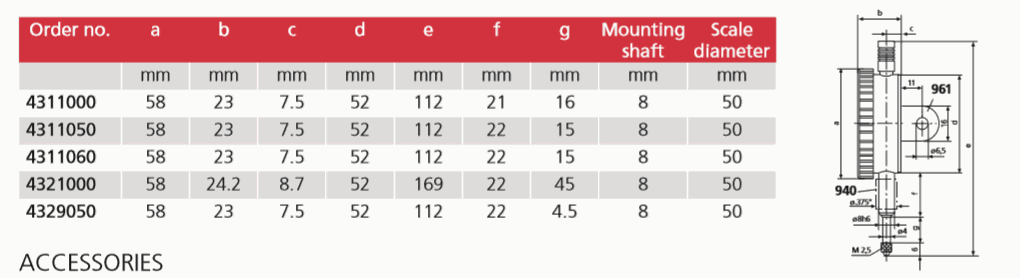

Accessories:

• Adapter bush (.375” / 8 mm), type 940

• Splash proof cap (58 mm)

• Lug back, vertical, for 803, type 966

• Lug back, horizontal, for 803, type 967
