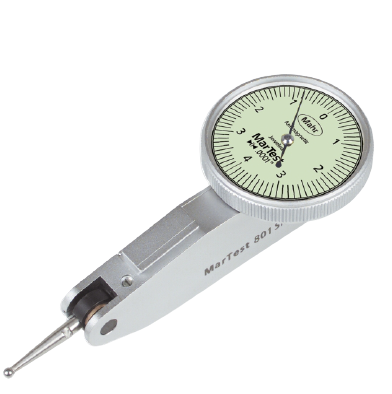

Product type: 801 SGE
Measuring range: ± .004”
Graduation value: .00005’’
Scale diameter: 1.5”
Type of dial face: 4– 0– 4
Dial color: green
Measuring force N: 0.15
Range per rev.: .008”
Deviation range fe : .0004”
Total deviation range fges : .0005"
Hysteresis fu : .00012”
Partial measuring span ft : .0002”
Repeatability fw : .0001”
Standard: factory
Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a3/8
Accessories:
Stylus ø 1.0 mm, carbide, l = 14.5 mm, type 800 ts
Stylus ø 2.0 mm, carbide, l = 14.5 mm, type 800 ts
Stylus ø 3.0 mm, carbide, l = 14.5 mm, type 800 ts
Stylus ø 2.0 mm, ruby, l = 14.5 mm, type 800 tsr
Spanner
FEATURES
For high-precision measurements
• High-contrast dial face, sealed with O-ring
• Mineral glass viewing panel for best protection: - against cracking, scratching or damage caused by hot shavings - optimum resistance to solvents
• Matt chrome-plated protective casing with three integrated dovetail guide rails
• Shockproof measuring mechanism
• Anti-magnetic model
• Automatic adjustment to the contacting direction ensuring infallible readings
• Ball bearing mounted double lever
• Friction clutch overload protection
