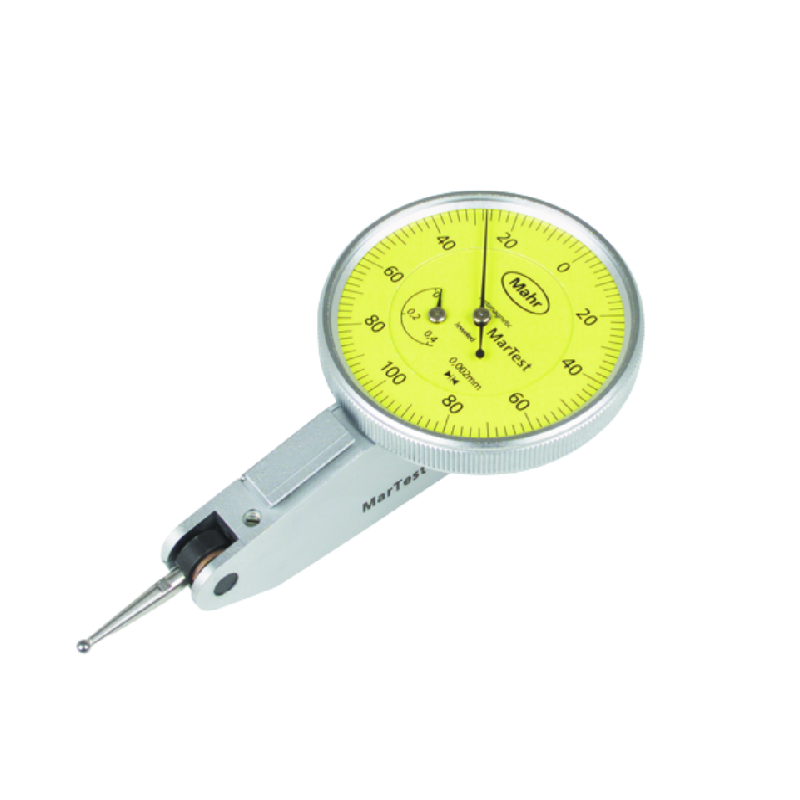

Mahr 4308250KAL ຕົວຊີ້ວັດການທົດສອບ (800 SRM, ± 0.2mm)

Measuring range: ± 0.2mm

Product type: 800 SRM

Graduation value: 0.002mm

Standard: Factory standard

Type of dial face: 100-0-100

Range per rev.: 0.2 mm

Span of error fe: 3 µm

Total span of error fges: 5 µm

Measuring value hysteresis fu: 3 µm

Partial measuring range ft: 2 µm

Repeatability fw: 1.5 µm

Measuring force: 0.15 N

Scale diameter: 38 mm

Dial color: Yellow

Dimensions: a 40.5 mm | c 13.6 mm | d 17.8 mm | e 75 mm | f 99 mm
